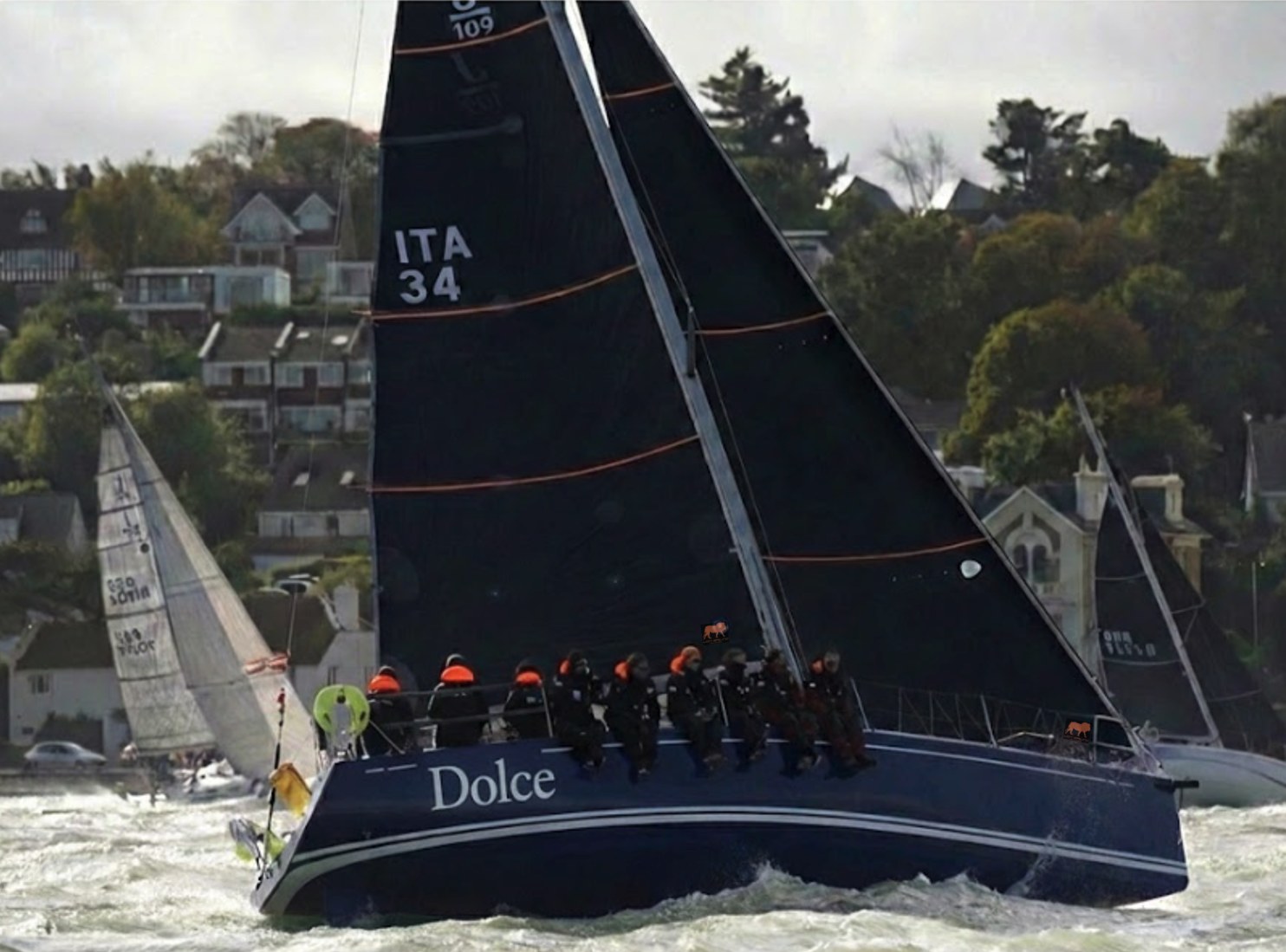

J/109 Running Rigging
Every J/109 line in Lion rope, sized to the class and spliced to length in the loft.
The J/109 line list
16 lines in LS Rio, LS Palma, LS Garda and LS St. Pete, about $3,810.63 in rope. Sizes from the class rules and the builder's rig spec. Rope price is the per-foot price times the length; ends are priced when you build the line.
Halyards
| Line | Rope | Diameter | Length | Rope price | Order |
|---|---|---|---|---|---|
| Main halyard | LS Rio | 10 mm | 110 ft | $503.80 | Build this line |
| Genoa/jib halyard | LS Rio | 10 mm | 115 ft | $526.70 | Build this line |
| Spinnaker halyard | LS Palma | 10 mm | 125 ft | $505.00 | Build this line |
Sheets
| Line | Rope | Diameter | Length | Rope price | Order |
|---|---|---|---|---|---|
| Spinnaker sheets (asymmetric, pair) | LS Garda | 8 mm | 85 ft | $186.15 | Build this line |
| Jib/genoa sheets (pair) | LS Palma | 11 mm | 45 ft | $281.25 | Build this line |
| Mainsheet | LS Palma | 11 mm | 95 ft | $593.75 | Build this line |
| Mainsheet traveller control lines (pair) | LS Palma | 8 mm | 20 ft | $57.20 | Build this line |
Controls and strops
| Line | Rope | Diameter | Length | Rope price | Order |
|---|---|---|---|---|---|
| 1st reef line (continuous single line tack/clew)Class spec 11 mm. Lion makes 10 mm, inside the class range of 10 to 11 mm. | LS Garda | 10 mm | 75 ft | $225.00 | Build this line |
| 2nd clew reef lineClass spec 11 mm. Lion makes 10 mm, inside the class range of 10 to 11 mm. | LS Garda | 10 mm | 60 ft | $180.00 | Build this line |
| Mainsheet fine tune | LS Garda | 10 mm | 20 ft | $60.00 | Build this line |
| Genoa car adjuster controls 4:1 (pair) | LS Garda | 10 mm | 55 ft | $165.00 | Build this line |
| Tack line (asymmetric) | LS Garda | 10 mm | 60 ft | $180.00 | Build this line |
| Cunningham / tack reef #2 line | LS Garda | 10 mm | 50 ft | $150.00 | Build this line |
| Bowsprit (pole) control line | LS Garda | 10 mm | 48 ft | $144.00 | Build this line |
| Bowsprit end stop | LS St. Pete | 6 mm | 8.2 ft | $19.93 | Build this line |
| Pole (sprit) retractor shock cord | LS Garda | 8 mm | 15 ft | $32.85 | Build this line |
Re-rope the whole J/109
Send your boat name and sail number. The loft checks the list against your rig, colour-codes the lines and quotes the set.
Sizes from: j109.org, j109.org, j109.org, j109.org, j109.org.
