Tylaska / Snap shackles

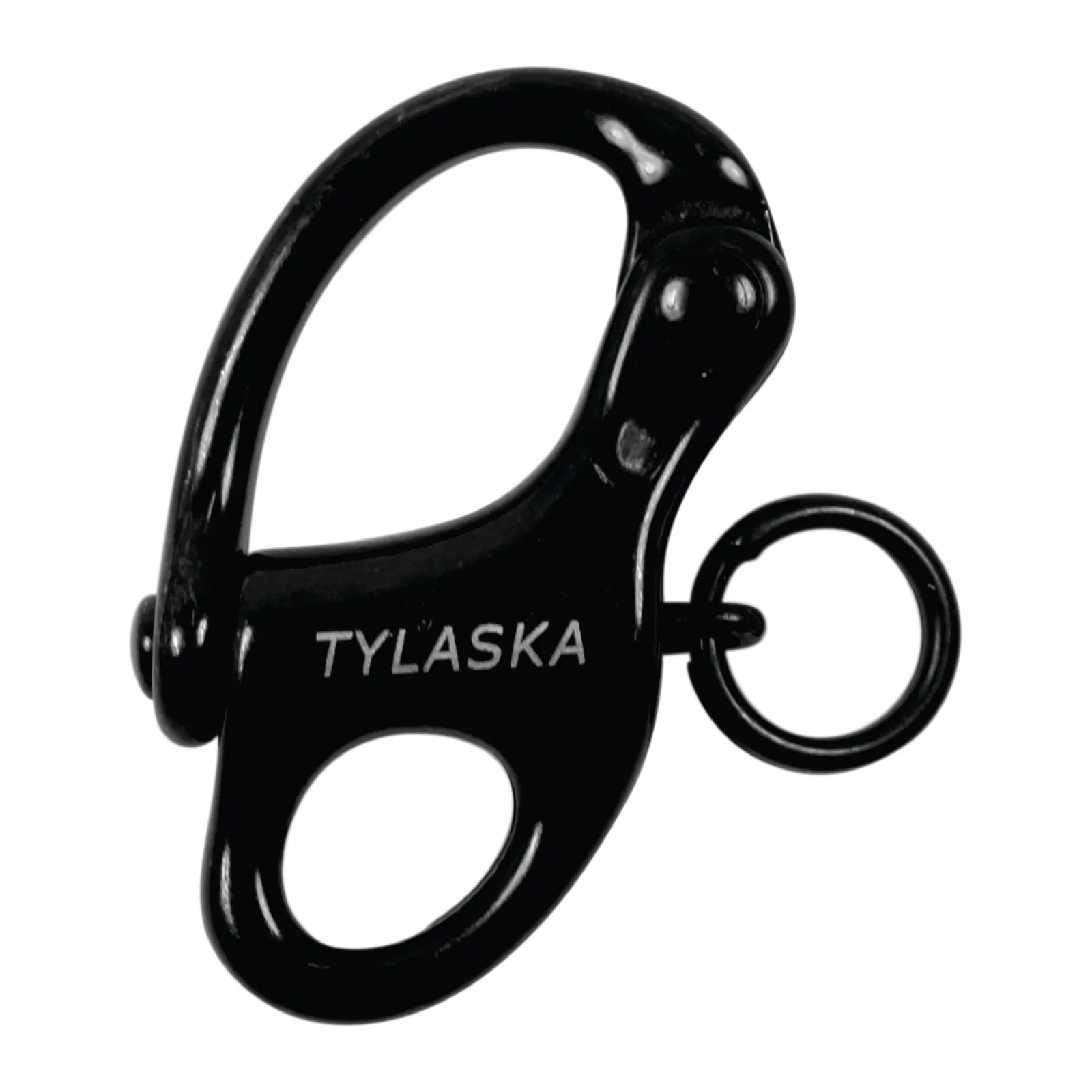

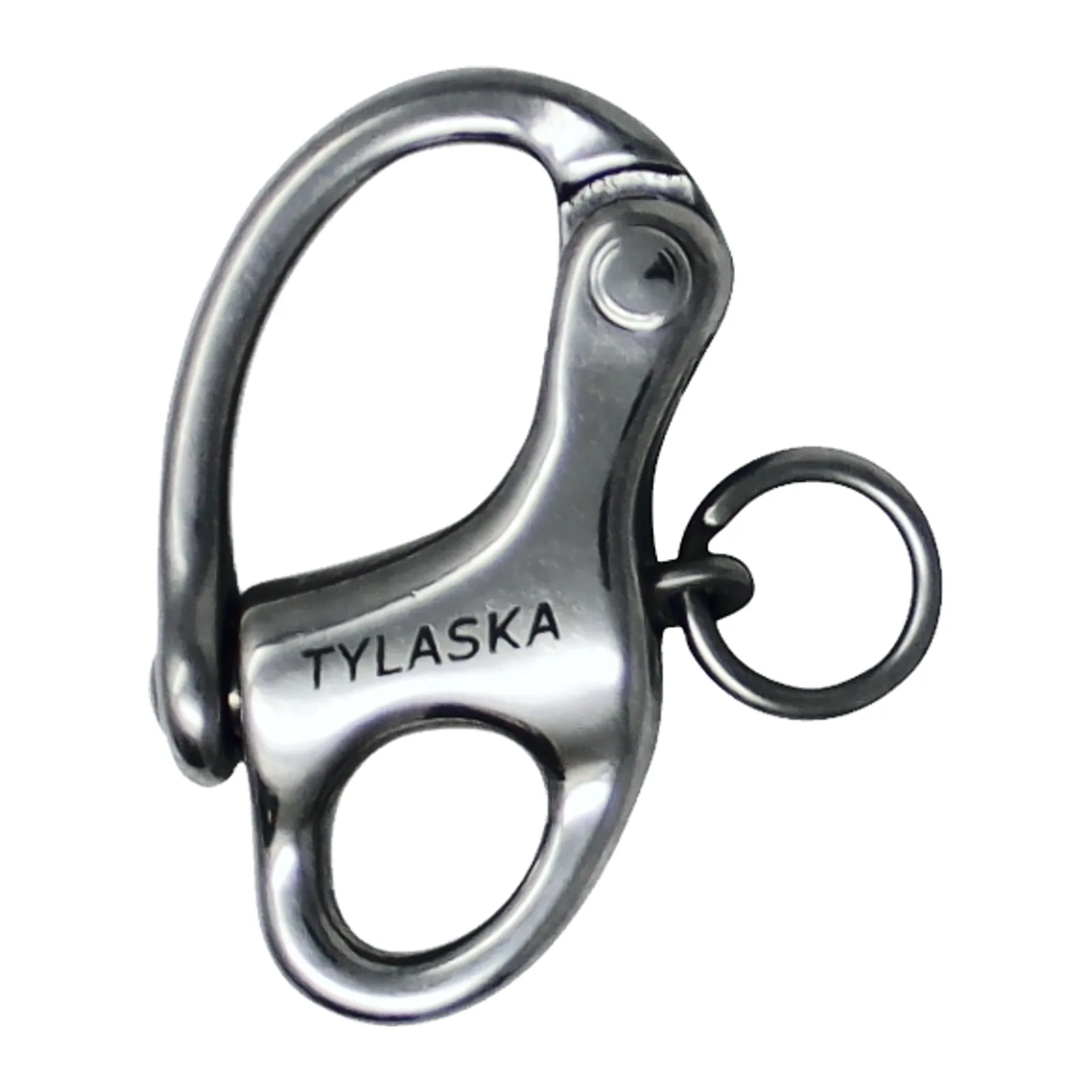

CR2 Snap Shackle
From $71.55
- 100% proof loading to maximum safe working load - High strength 17-4 PH stainless steel - Incredible strength for its size, 1000lb working load, 2000lb breaking load - Fully opening clevis for easier attachment and removal - Sleek snag-resistant geometry - Captive plunger-pin mechanism with firm spring action - Available with a polished, matte gray, or black oxide finish
100% proof loading to maximum safe working load
Features
- High strength 17-4 PH stainless steel
- Incredible strength for its size, 1000lb working load, 2000lb breaking load
- Fully opening clevis for easier attachment and removal
- Sleek snag-resistant geometry
- Captive plunger-pin mechanism with firm spring action
- Available with a polished, matte gray, or black oxide finish
| Breaking Load | 910 kg |
|---|---|
| Working Load Limit | 455 kg |
| Weight | 12 g |

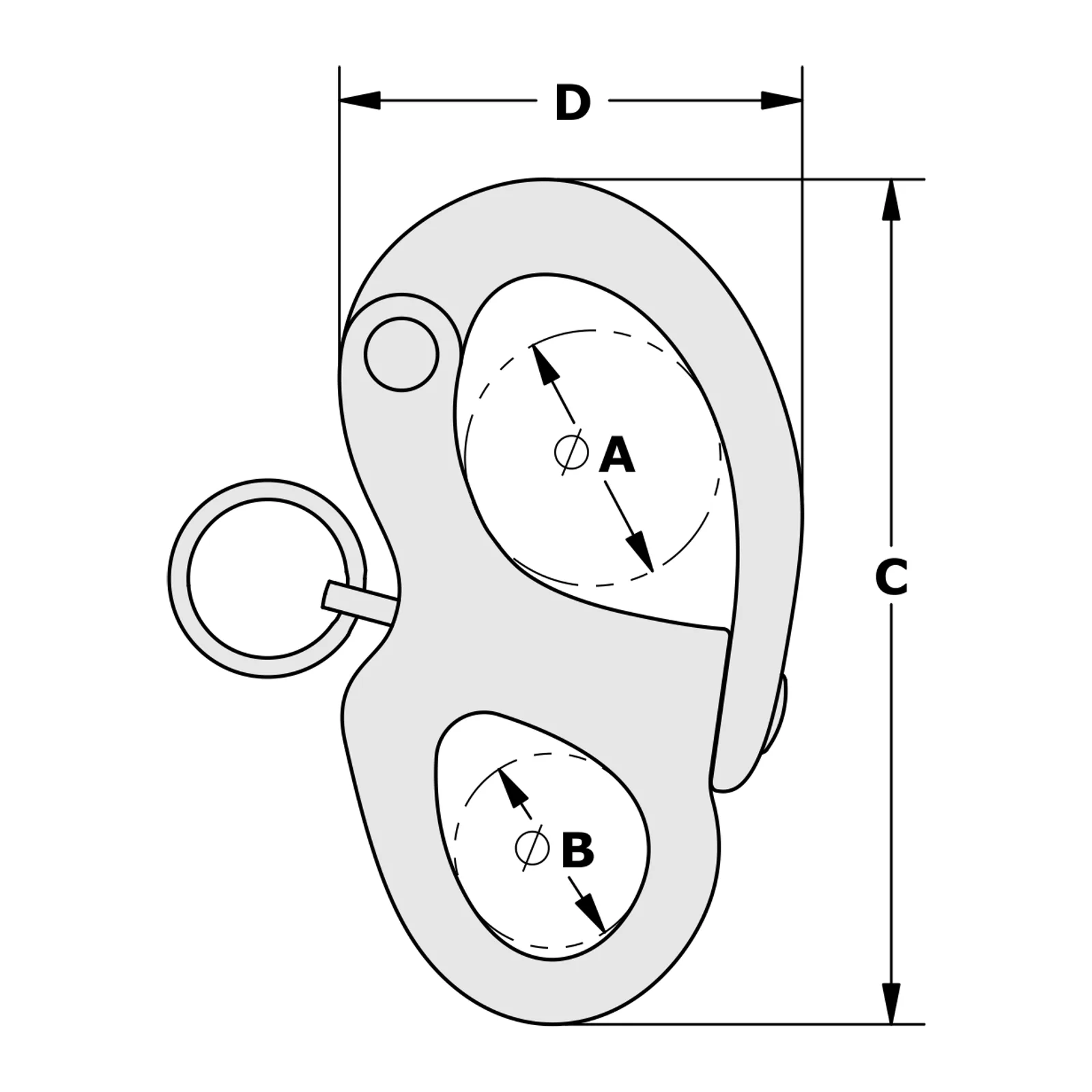

| Dimension A (see drawing) | 9.7 mm |
| Dimension B (see drawing) | 6.6 mm |
| Dimension C (see drawing) | 35.1 mm |
| Dimension D (see drawing) | 20.3 mm |
Options
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
Choose options
