Tylaska / Halyard shackles

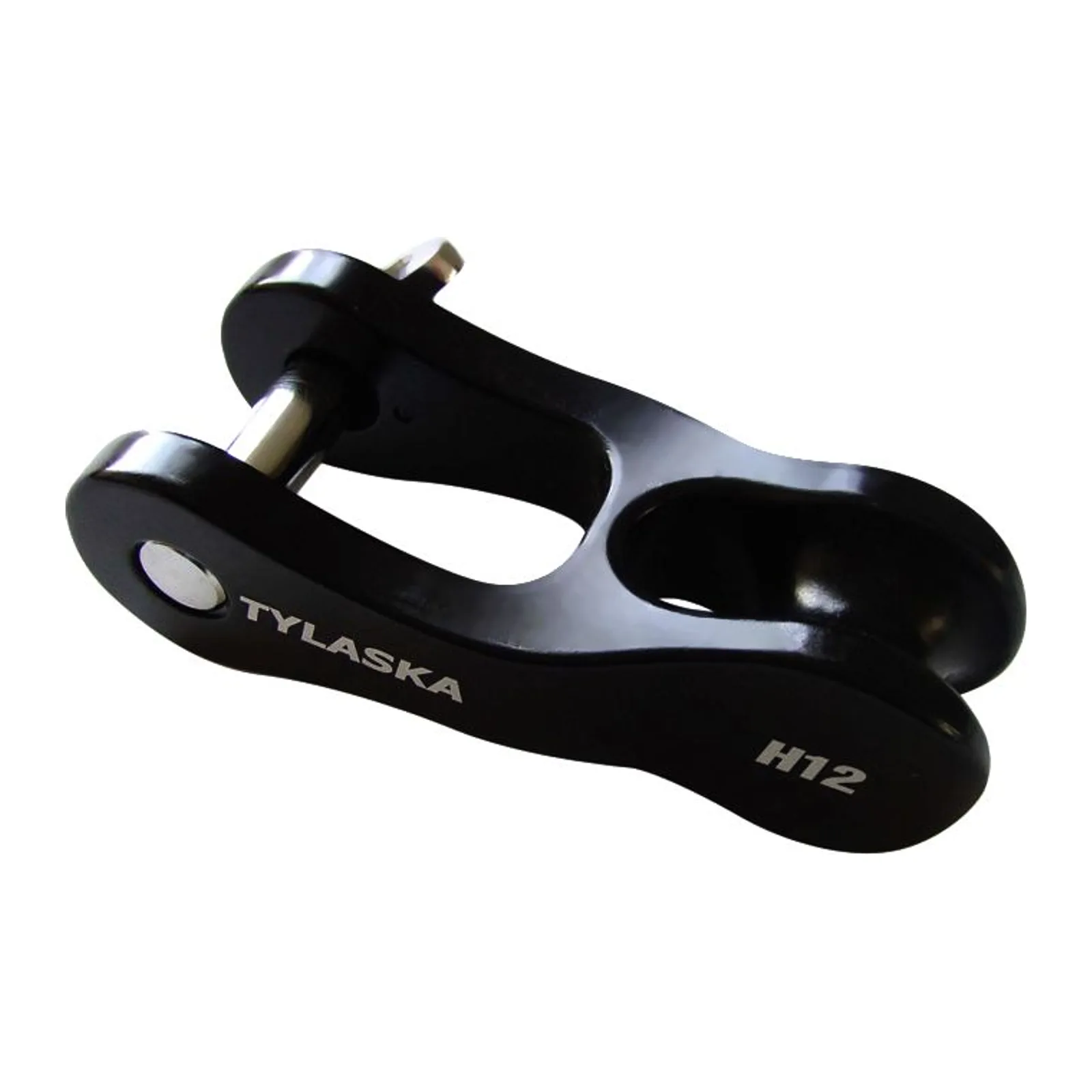

H12 Fixed Thimble Halyard Shackle
$212.58
- For boats 30-45 ft - Machined 7075 aluminum - Captive stainless steel cross pin - Recessed thread allows for full throat opening - Hard-coat anodized for maximum coating durability - Available with a fixed thimble or 2:1 sheave - Split 2:1 model opens like a snatch block for easy installation and removal
For boats 30-45 ft
Features
- Machined 7075 aluminum
- Captive stainless steel cross pin
- Recessed thread allows for full throat opening
- Hard-coat anodized for maximum coating durability
- Available with a fixed thimble or 2:1 sheave
- Split 2:1 model opens like a snatch block for easy installation and removal
| Breaking Load | 5440 kg |
|---|---|
| Working Load Limit | 2720 kg |
| Weight | 132 g |
| Max Line Size | 14 mm |
| Dimension A (see drawing) | 29 mm |
| Dimension B (see drawing) | 15.9 mm |
| Dimension C (see drawing) | 95 mm |
| Dimension D (see drawing) | 38.1 mm |
| Dimension E (see drawing) | 22.4 mm |
| Dimension F (see drawing) | 9.7 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
