Tylaska / Halyard shackles

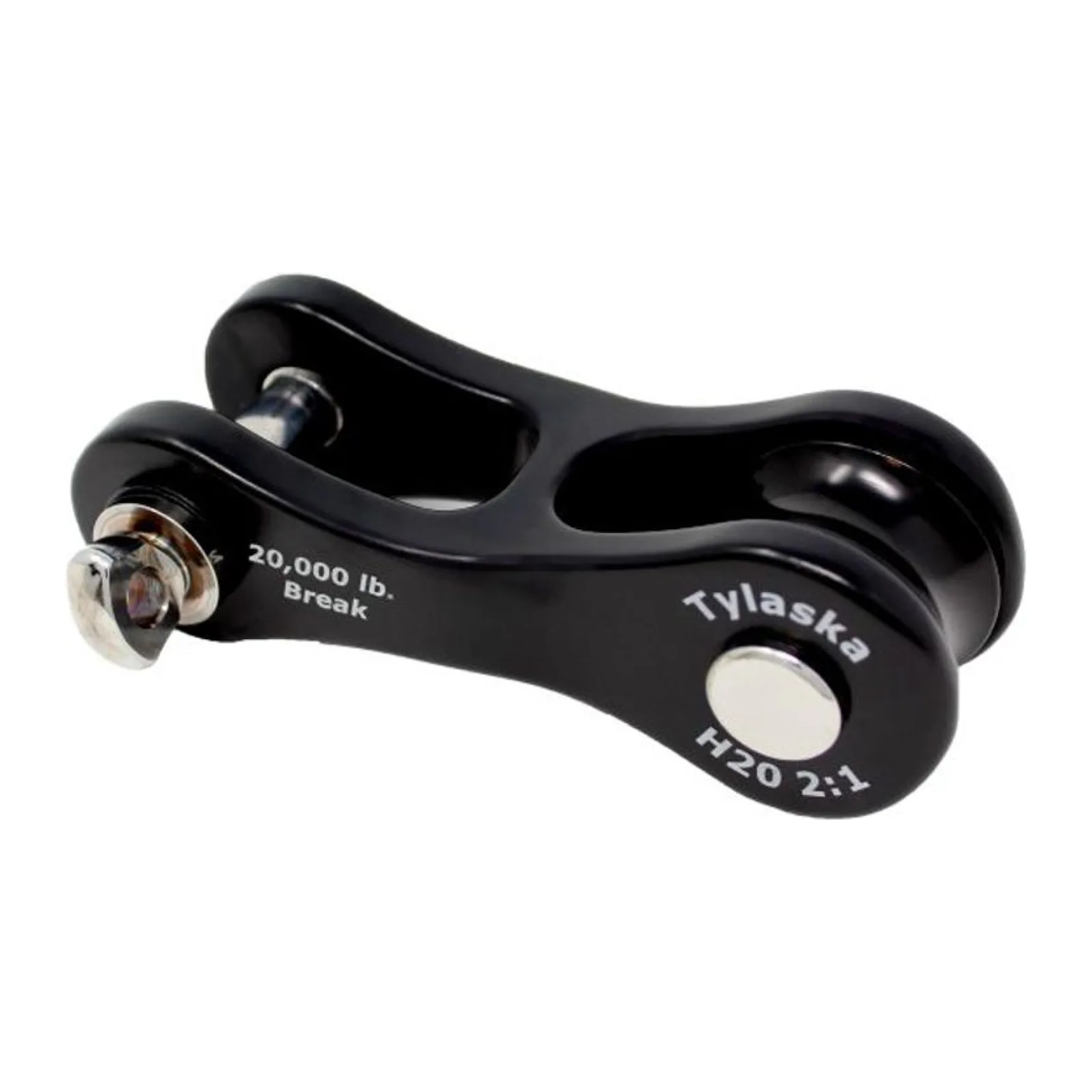

H20 2:1 Halyard Shackle
$449.54
- For boats 40-70 ft - Machined 7075 aluminum - Captive stainless steel cross pin - Recessed thread allows for full throat opening - Hard-coat anodized for maximum coating durability - Available with a fixed thimble or 2:1 sheave
For boats 40-70 ft
Features
- Machined 7075 aluminum
- Captive stainless steel cross pin
- Recessed thread allows for full throat opening
- Hard-coat anodized for maximum coating durability
- Available with a fixed thimble or 2:1 sheave
| Breaking Load | 9070 kg |
|---|---|
| Working Load Limit | 4540 kg |
| Weight | 383 g |
| Max Line Size | 18 mm |
| Dimension A (see drawing) | 38.1 mm |
| Dimension B (see drawing) | 22.2 mm |
| Dimension C (see drawing) | 133.3 mm |
| Dimension D (see drawing) | 46.7 mm |
| Dimension E (see drawing) | 25.4 mm |
| Dimension F (see drawing) | 12.7 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
