Tylaska / Halyard shackles

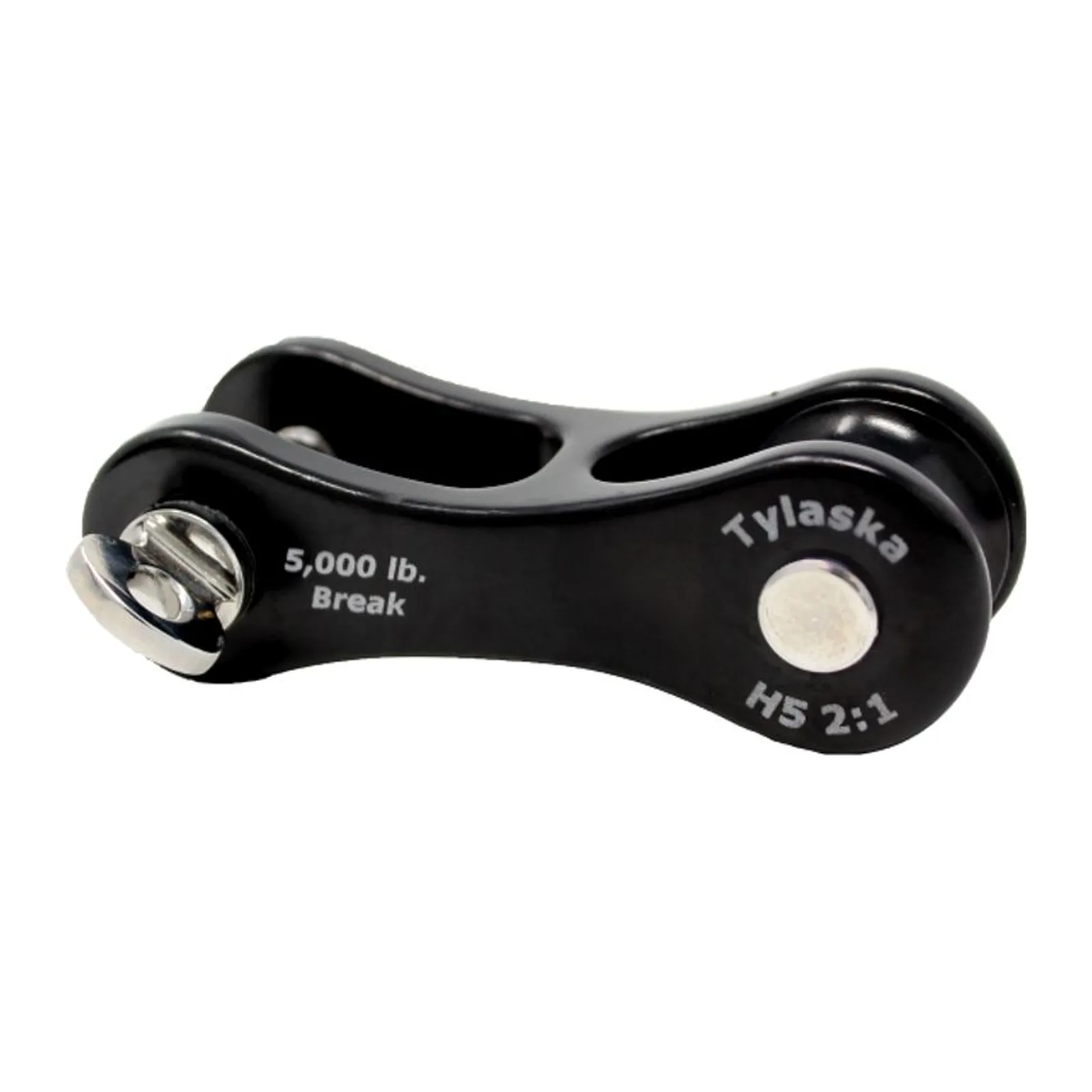

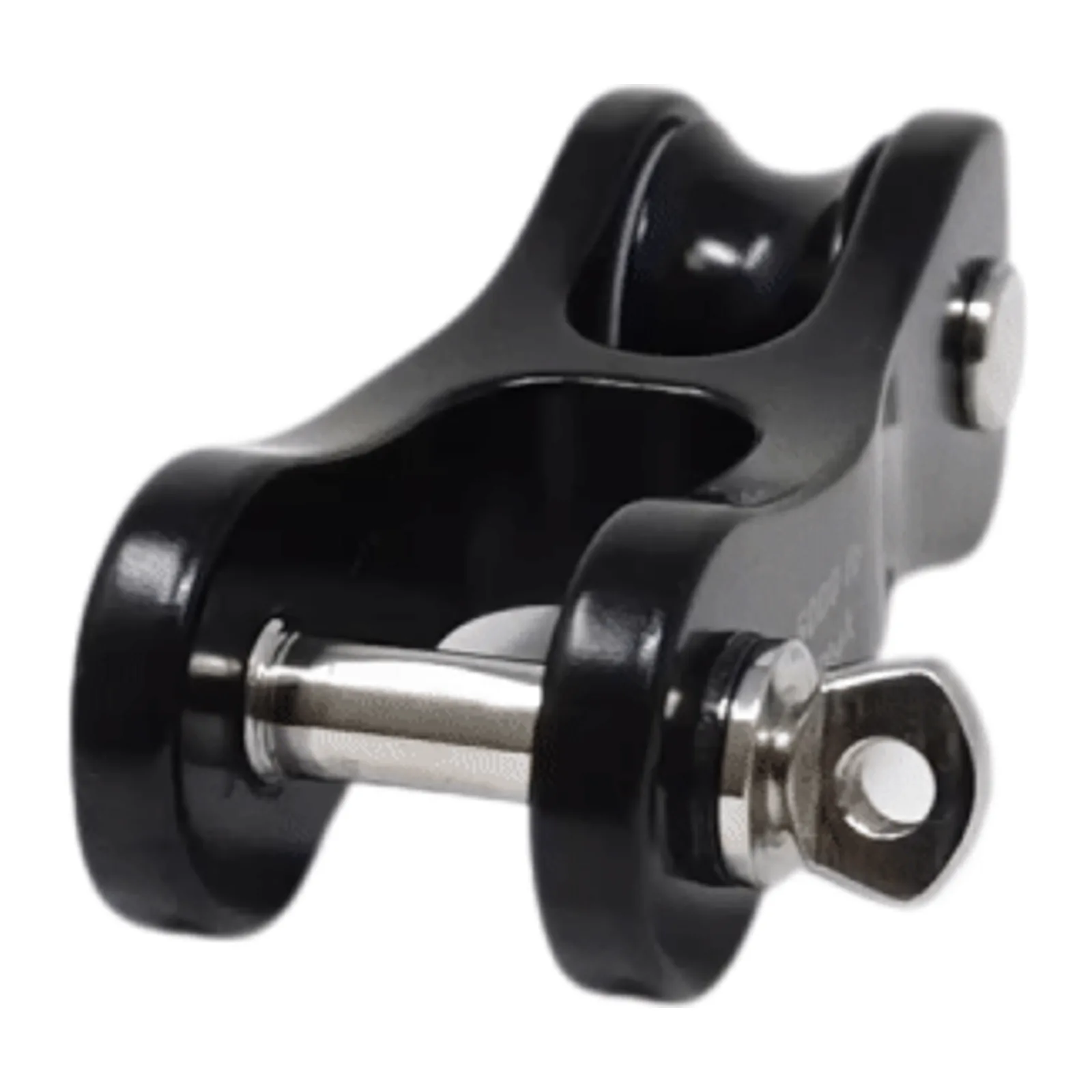

H5 2:1 Halyard Shackle
$218.84
- For boats 20-30 ft - Captive stainless steel cross pin - Machined 6061 aluminum - Recessed thread allows for full throat opening - Hard-coat anodized for maximum coating durability - Available with a fixed thimble or a sheave for 2:1 purchases
For boats 20-30 ft
Features
- Captive stainless steel cross pin
- Machined 6061 aluminum
- Recessed thread allows for full throat opening
- Hard-coat anodized for maximum coating durability
- Available with a fixed thimble or a sheave for 2:1 purchases
| Breaking Load | 2270 kg |
|---|---|
| Working Load Limit | 1130 kg |
| Weight | 61 g |
| Max Line Size | 10 mm |
| Dimension A (see drawing) | 22 mm |
| Dimension B (see drawing) | 12.6 mm |
| Dimension C (see drawing) | 74.1 mm |
| Dimension D (see drawing) | 27.2 mm |
| Dimension E (see drawing) | 16.1 mm |
| Dimension F (see drawing) | 6.6 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
