Tylaska / Halyard shackles

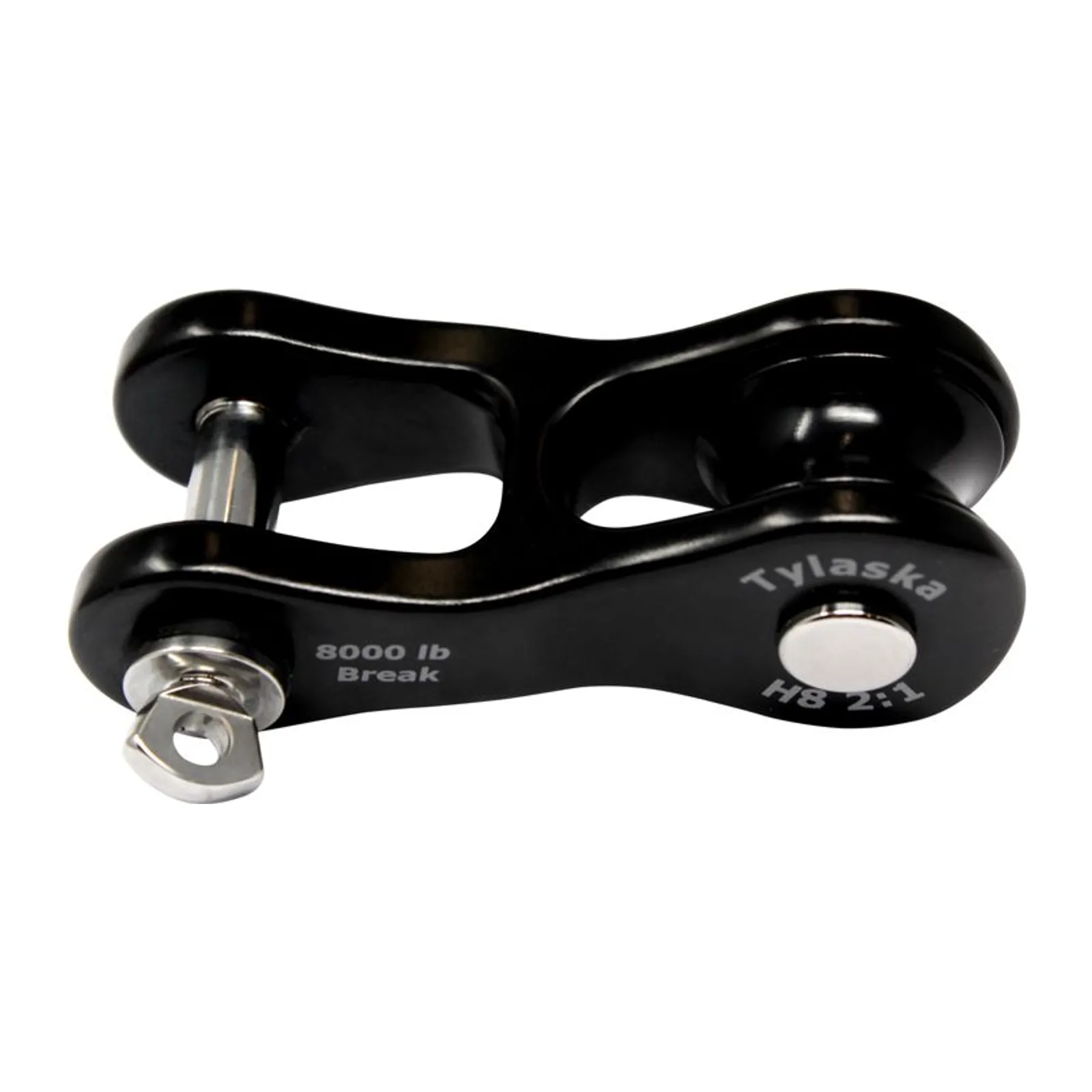

H8 2:1 Halyard Shackle
$233.93
- For boats 24-36 ft - Captive stainless steel cross pin - Machined 6061 aluminum - Recessed thread allows for full throat opening - Hard-coat anodized for maximum coating durability - Available with a fixed thimble or a 2:1 sheave - Split 2:1 model opens like a snatch block for easy installation and removal
For boats 24-36 ft
Features
- Captive stainless steel cross pin
- Machined 6061 aluminum
- Recessed thread allows for full throat opening
- Hard-coat anodized for maximum coating durability
- Available with a fixed thimble or a 2:1 sheave
- Split 2:1 model opens like a snatch block for easy installation and removal
| Breaking Load | 3630 kg |
|---|---|
| Working Load Limit | 1810 kg |
| Weight | 109 g |
| Max Line Size | 12 mm |
| Dimension A (see drawing) | 21.2 mm |
| Dimension B (see drawing) | 15 mm |
| Dimension C (see drawing) | 84.1 mm |
| Dimension D (see drawing) | 33.5 mm |
| Dimension E (see drawing) | 19.3 mm |
| Dimension F (see drawing) | 8.1 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
Choose options
