Tylaska / Lifting hooks

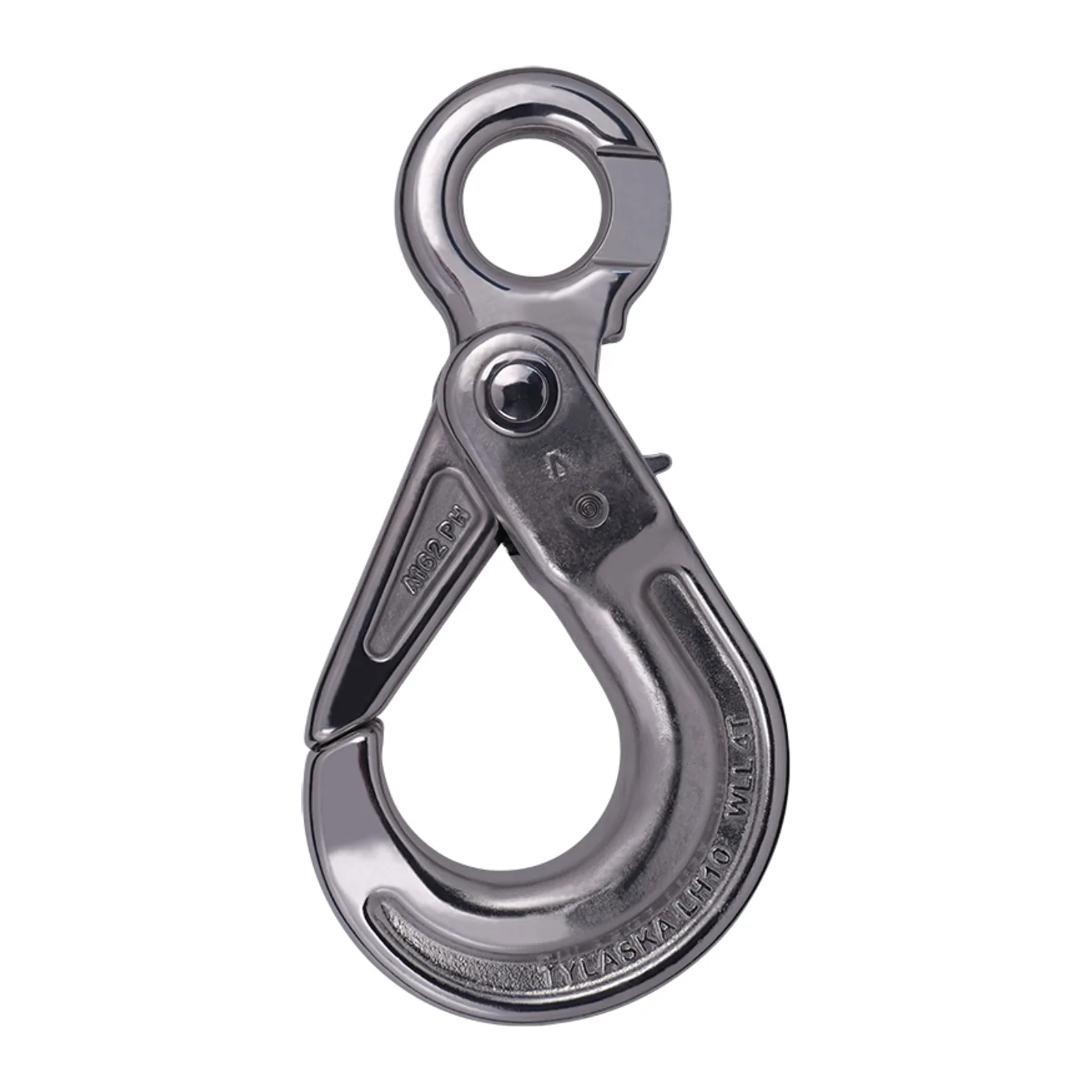

LH 10 Stainless Steel Lifting Hook
$483.98
- Fully traceable forged 17-4 PH stainless steel hook and latch. - 100% stainless steel components - Suitable for use with Grade 80 and Grade 100 chain. - 27% stronger than equivalent size grade 8 hooks. - Available in polished stainless steel or yellow powder coated finish. - Fully replaceable locking mechanism.
Fully traceable forged 17-4 PH stainless steel hook and latch.
Features
- 100% stainless steel components
- Suitable for use with Grade 80 and Grade 100 chain.
- 27% stronger than equivalent size grade 8 hooks.
- Available in polished stainless steel or yellow powder coated finish.
- Fully replaceable locking mechanism.
| Working Load | 4 mt |
|---|---|
| Weight | 1.7 kg |

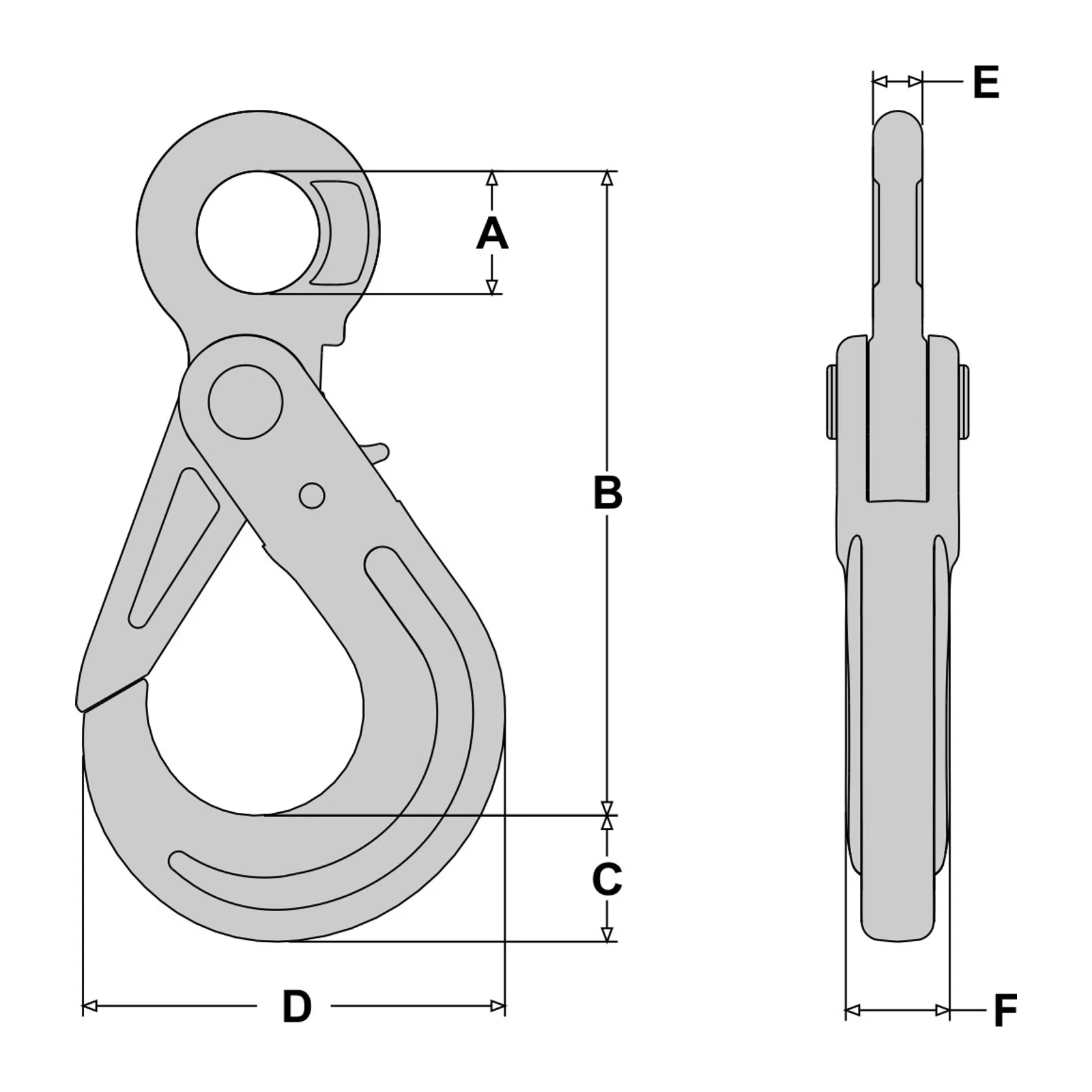

| Dimension A (see drawing) | 32 mm |
| Dimension B (see drawing) | 166 mm |
| Dimension C (see drawing) | 33 mm |
| Dimension D (see drawing) | 109 mm |
| Dimension E (see drawing) | 14 mm |
| Dimension F (see drawing) | 28 mm |
| Dimension G (see drawing) | 44 mm |
| Dimension H (see drawing) | 53.3 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
