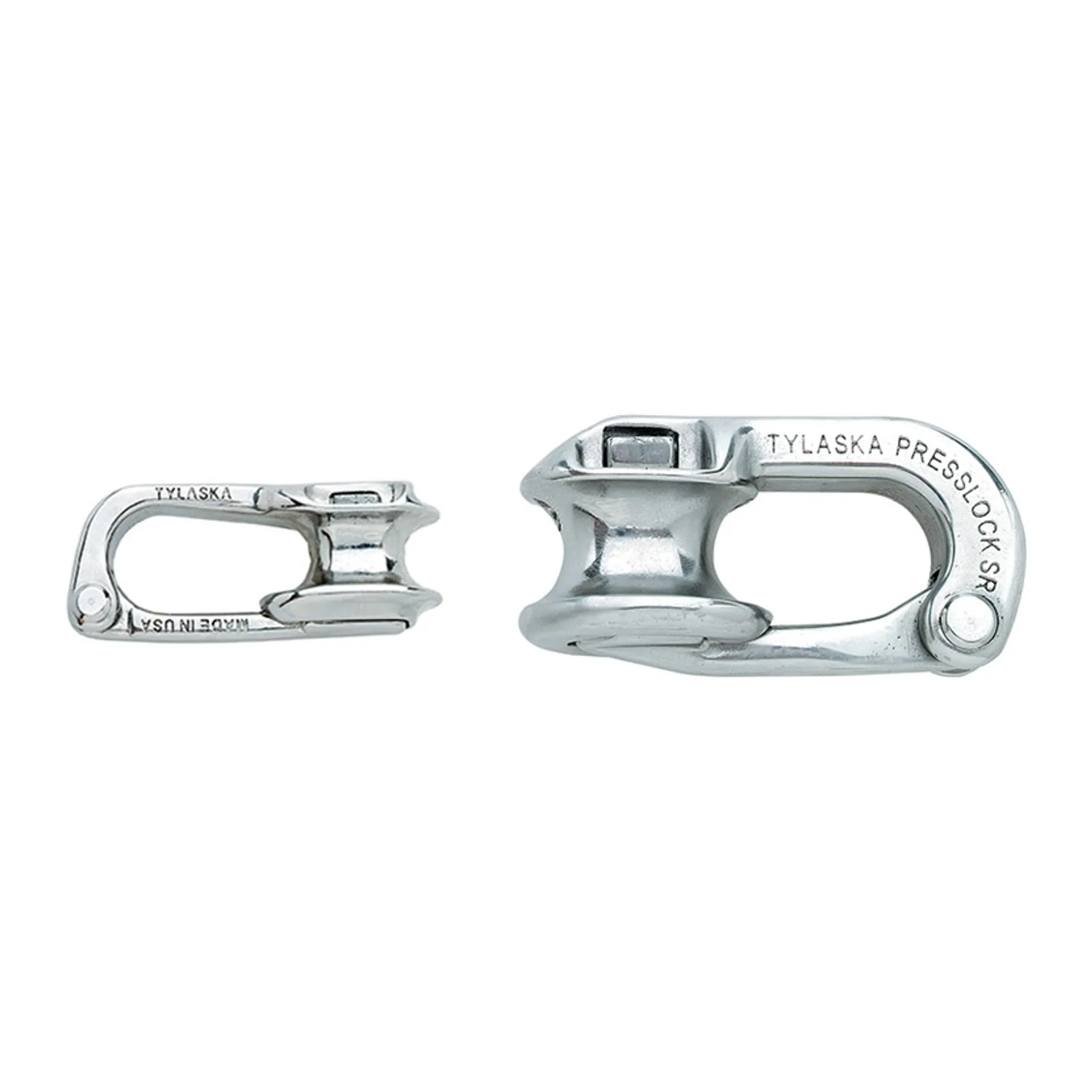

Tylaska Press Lock Sr Snap Shackle
Tylaska Press Lock Sr Snap Shackle

Tylaska / Snap shackles

Tylaska Press Lock Sr Snap Shackle

$175.2 · 30% off

Weight – 5.8 oz

Features

  • Max Work load – 10,000 lb
  • Breaking strength – 20,000 lb
  • Max line Size – 5/8″
  • Suitable for 40-80 ft boats
Breaking Load9070 kg
Working Load Limit4540 kg
Weight164 g
Max Line Size16 mm

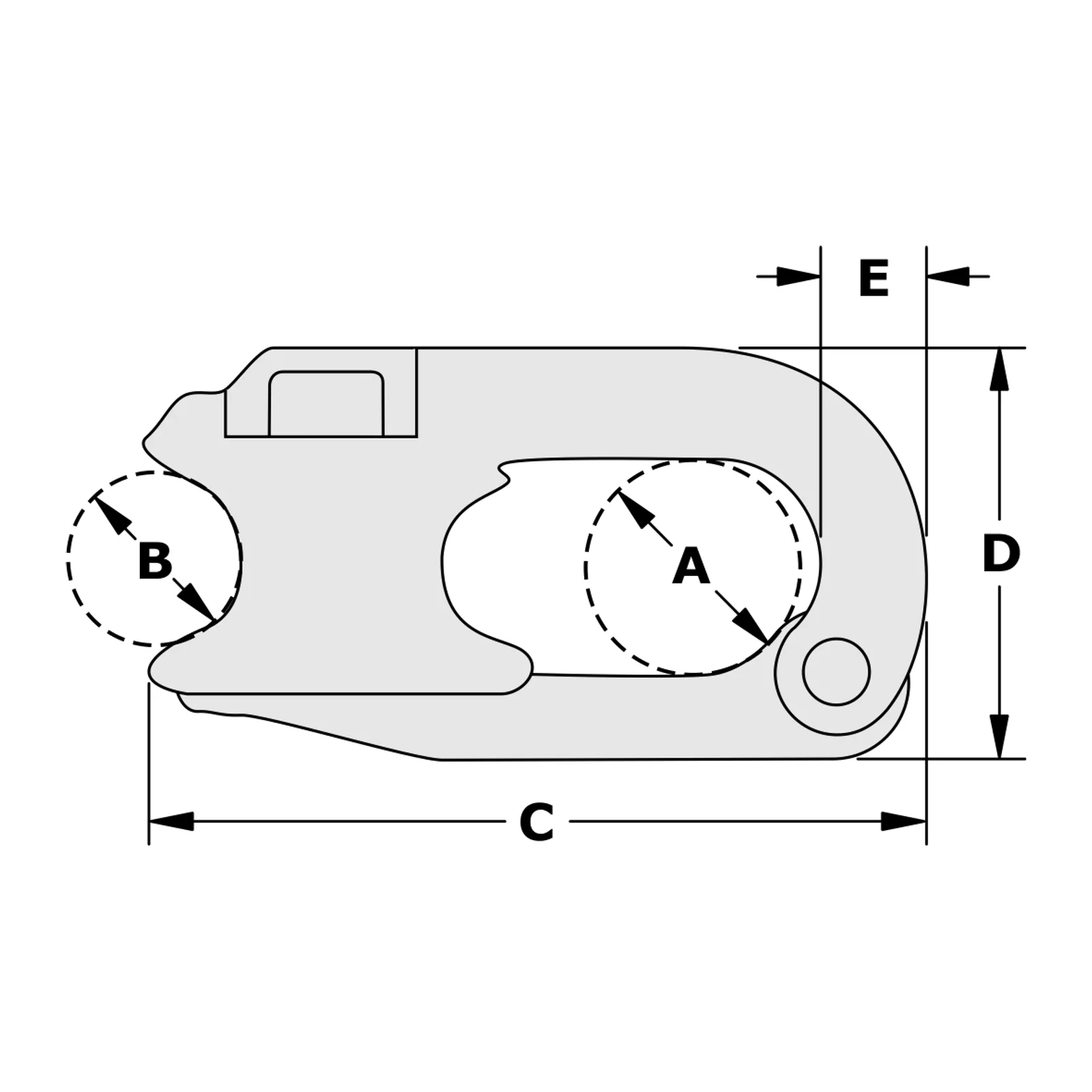

Dimension A (see drawing)19 mm
Dimension B (see drawing)17.3 mm
Dimension C (see drawing)71.1 mm
Dimension D (see drawing)36.8 mm
Dimension E (see drawing)11.9 mm

Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
