Tylaska / Snap shackles
SS10 Plunger Pin Snap Shackle
$521.55
- Breaking strength – 20,000 lb - Recommended Safety Factor 8:1 - Weight – 1.56 lb - Length – 4.50 in. - Heat treated 17-4 PH stainless steel - Not approved for lifting applications
Breaking strength – 20,000 lb
Features
- Recommended Safety Factor 8:1
- Weight – 1.56 lb
- Length – 4.50 in.
- Heat treated 17-4 PH stainless steel
- Not approved for lifting applications
| Breaking Load | 9072 kg |
|---|---|
| Safety Factor (Recommended) | 8:1 |
| Weight | 0.71 kg |

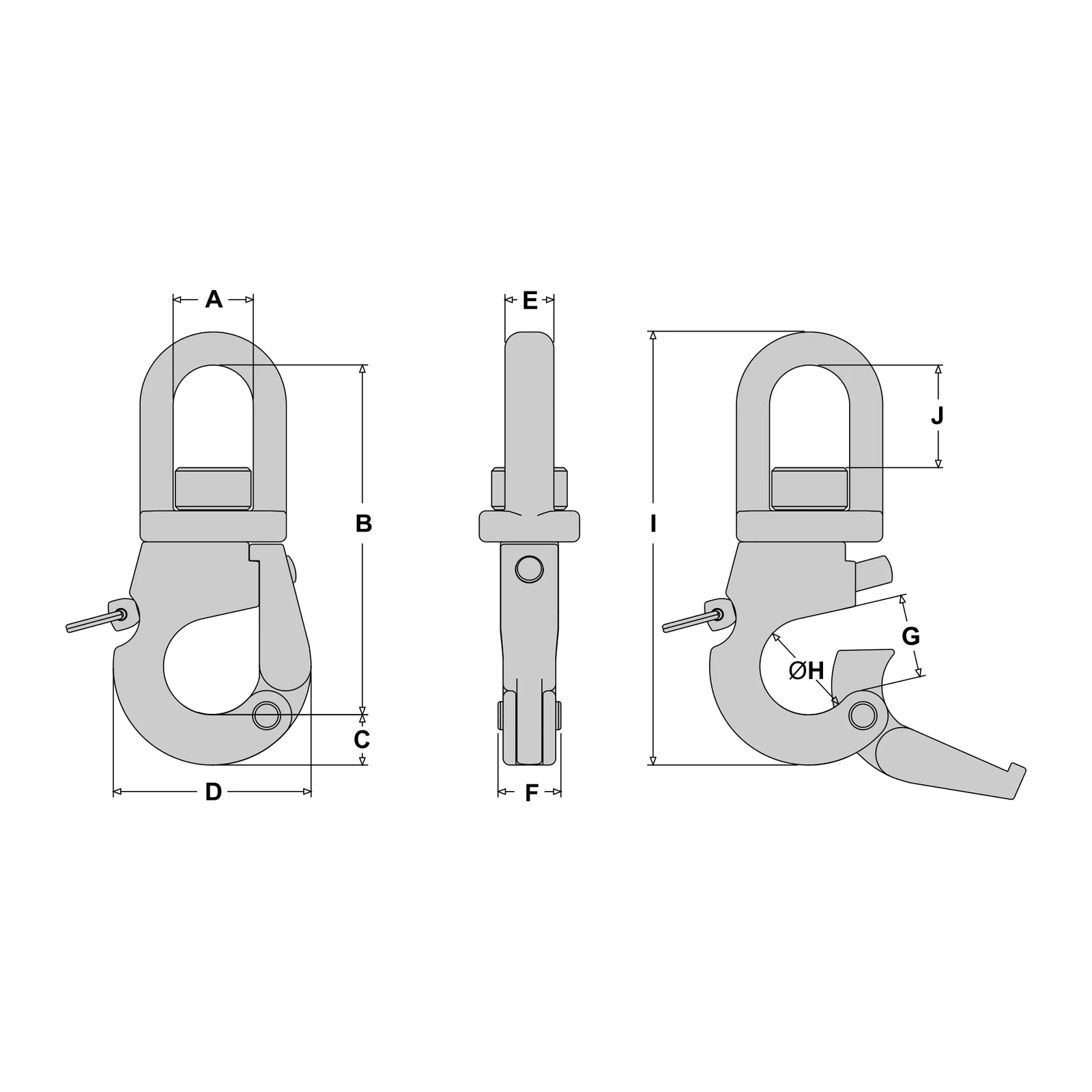

| Dimension A (see drawing) | 23.1 mm |
| Dimension B (see drawing) | 111.1 mm |
| Dimension C (see drawing) | 13.5 mm |
| Dimension D (see drawing) | 54.4 mm |
| Dimension E (see drawing) | 13.5 mm |
| Dimension F (see drawing) | 16.4 mm |
| Dimension G (see drawing) | 23.7 mm |
| Dimension H (see drawing) | 27.7 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
