Tylaska / Lifting hooks

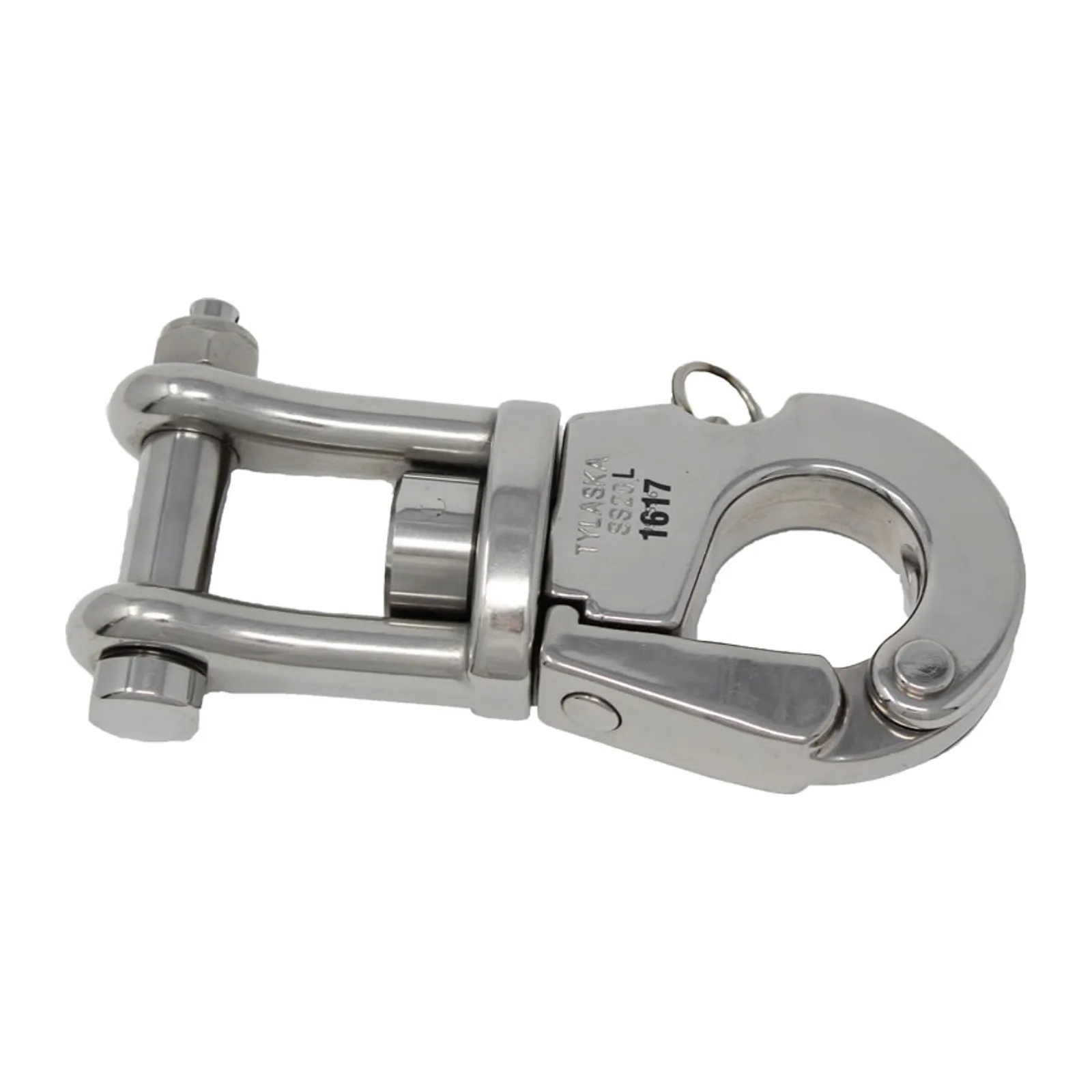

SS20L Clevis Bail Plunger Pin Lifting Hook
$1,307.4
- CE Marked Lifting Accessory - WLL 2t - Weight- 1.2 kg - Length- 167mm
CE Marked Lifting Accessory
Features
- WLL 2t
- Weight
- 1.2 kg
- Length
- 167mm
| Working Load | 2 mt |
|---|---|
| Weight | 1.2 kg |

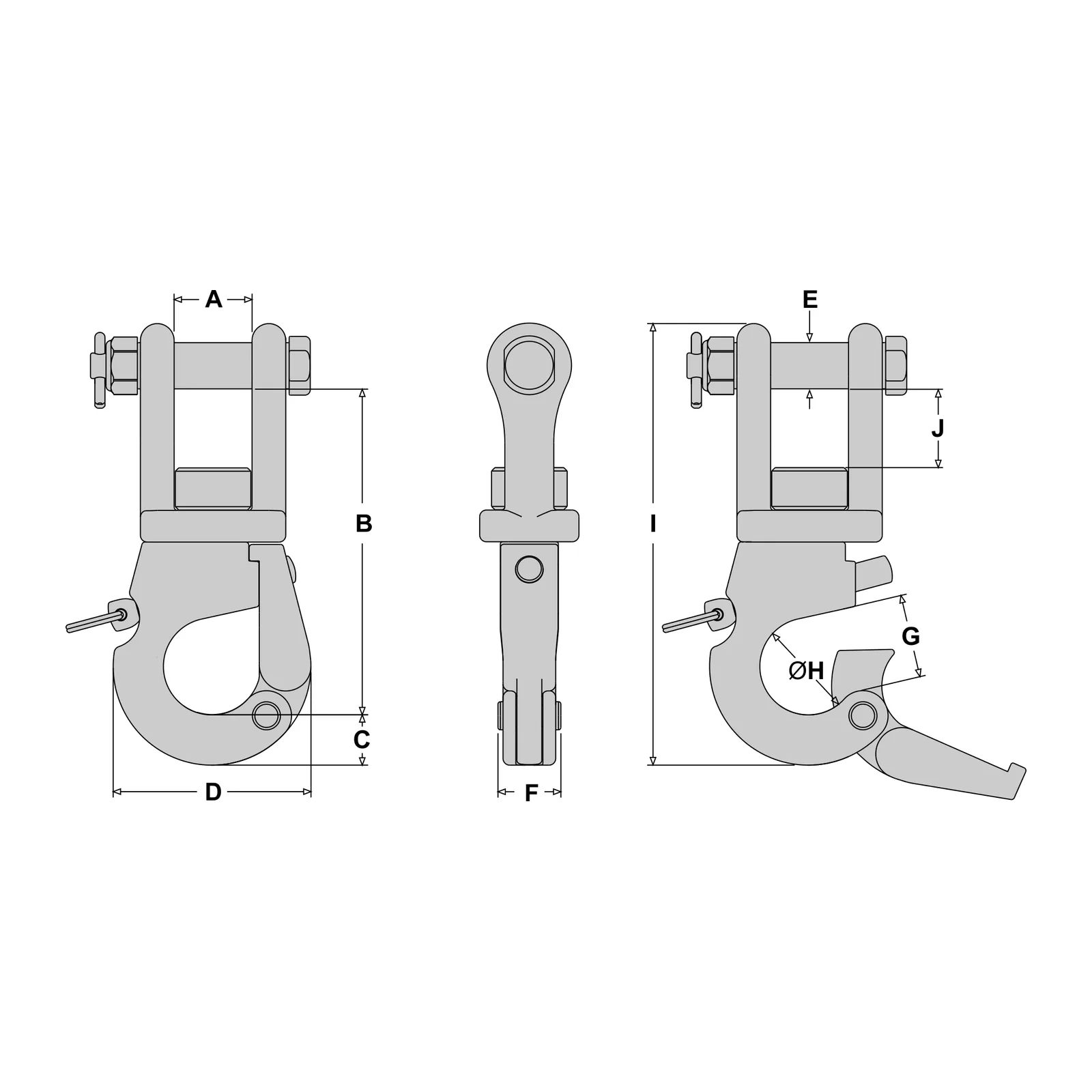

| Dimension A (see drawing) | 29.3 mm |
| Dimension B (see drawing) | 124.2 mm |
| Dimension C (see drawing) | 18.9 mm |
| Dimension D (see drawing) | 74.4 mm |
| Dimension E (see drawing) | 17.3 mm |
| Dimension F (see drawing) | 24.6 mm |
| Dimension G (see drawing) | 31.4 mm |
| Dimension H (see drawing) | 36.5 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
