Tylaska / Lifting hooks
SS60M Plunger Pin Lifting Hook
$6,849.5
- CE Marked Lifting Accessory - WLL 10t - Min. Break Load- 60t - Weight- 7.4 kg - Length- 30 cm
CE Marked Lifting Accessory
Features
- WLL 10t
- Min. Break Load
- 60t
- Weight
- 7.4 kg
- Length
- 30 cm
| Working Load | 10 mt |
|---|---|
| Weight | 7.45 kg |

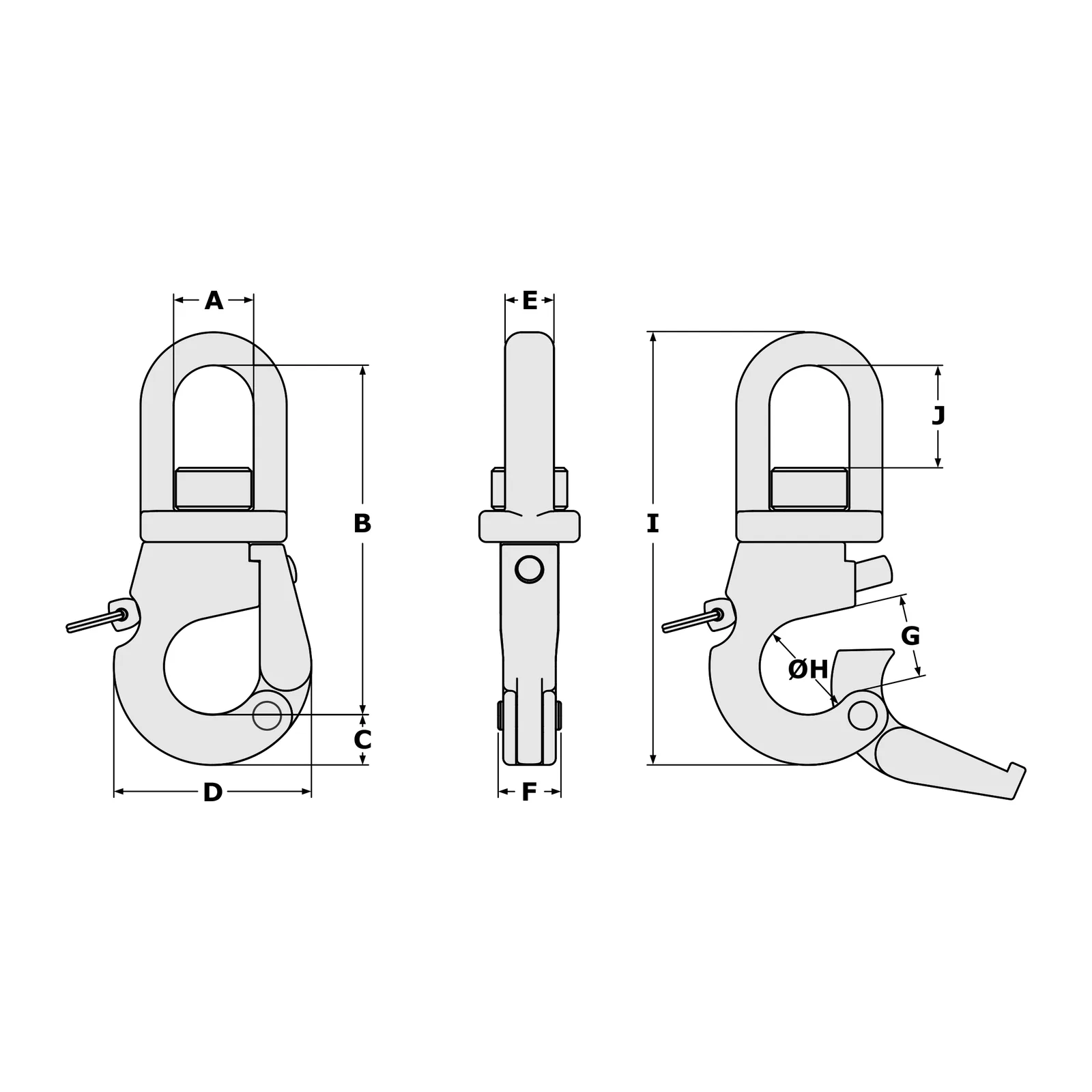

| Dimension A (see drawing) | 57.7 mm |
| Dimension B (see drawing) | 242.0 mm |
| Dimension C (see drawing) | 36.4 mm |
| Dimension D (see drawing) | 142.4 mm |
| Dimension E (see drawing) | 38.1 mm |
| Dimension F (see drawing) | 40.1 mm |
| Dimension G (see drawing) | 59.5 mm |
| Dimension H (see drawing) | 69.8 mm |
| Dimension I (see drawing) | 300 mm |
| Dimension J (see drawing) | 57.7 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
