Tylaska / Snap shackles

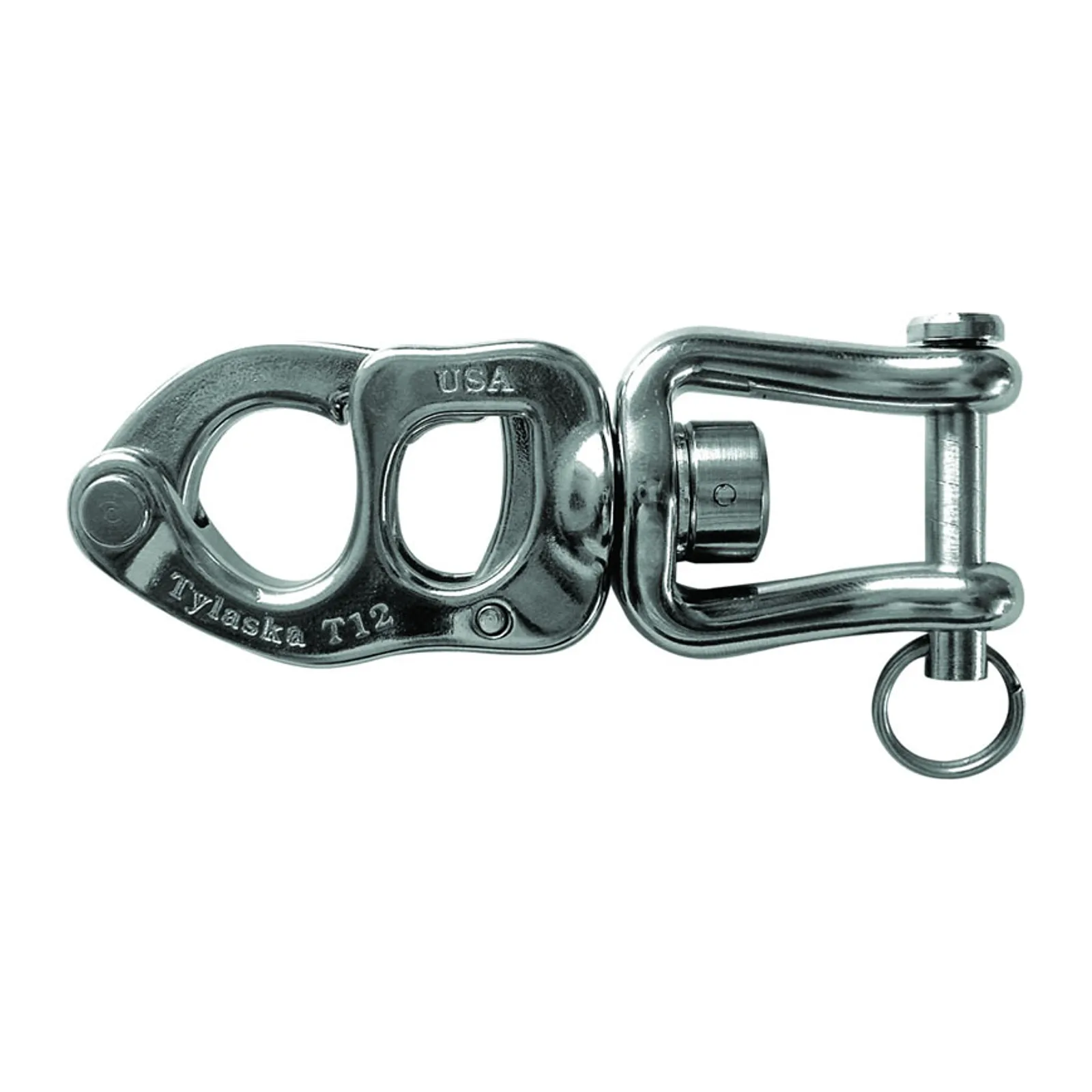

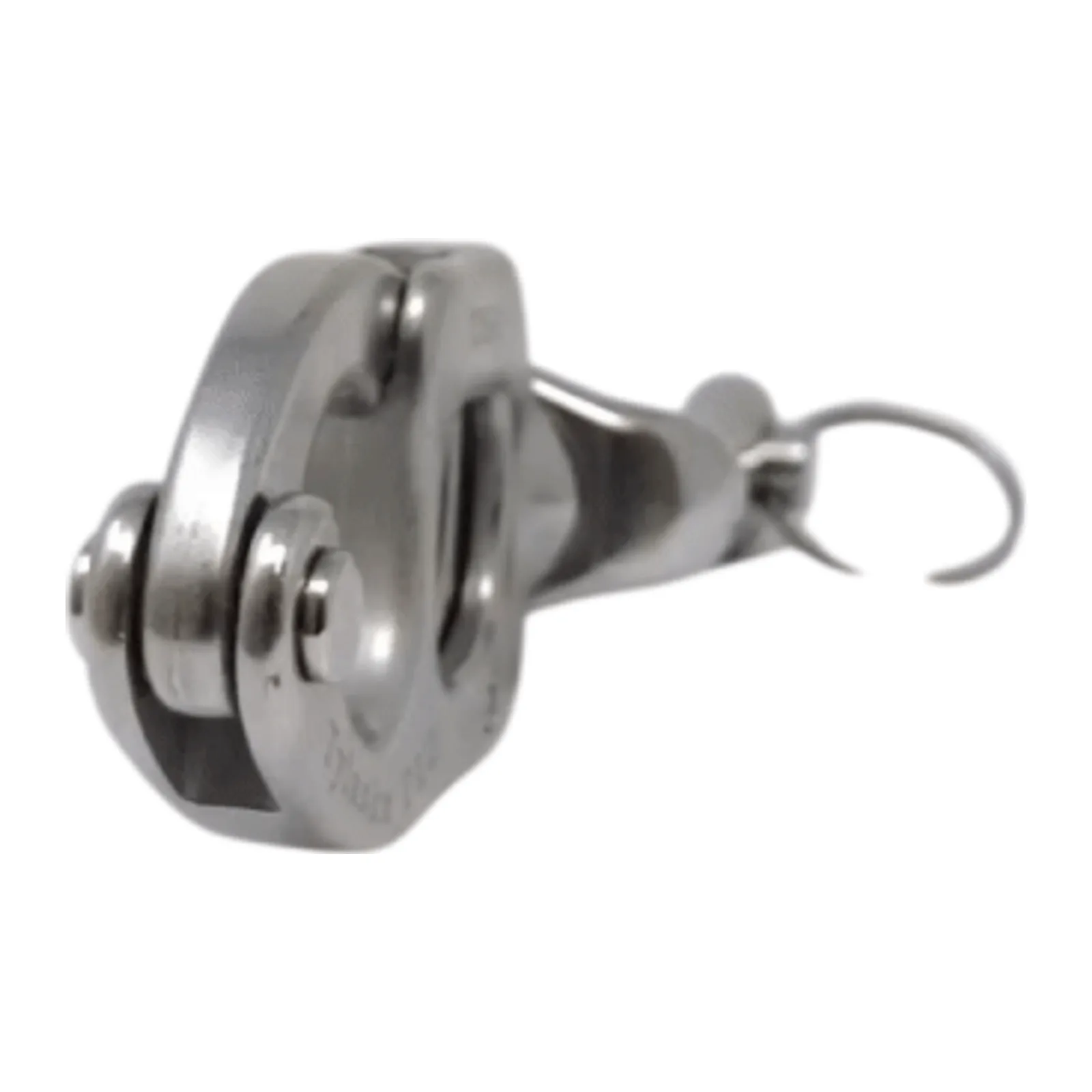

T12 Clevis Bail Trigger Snap Shackle
$304.07
- For boats 30-45ft - Breaking load – 12,000 lb - 100% proof tested to max working load - Heat treated 17-4 PH stainless steel
For boats 30-45ft
Features
- Breaking load – 12,000 lb
- 100% proof tested to max working load
- Heat treated 17-4 PH stainless steel
| Breaking Load | 5440 kg |
|---|---|
| Working Load Limit | 2720 kg |
| Weight | 196 g |
| Dimension A (see drawing) | 18 mm |
| Dimension B (see drawing) | 20.5 mm |
| Dimension C (see drawing) | 110 mm |
| Dimension D (see drawing) | 7.9 mm |
| Dimension E (see drawing) | 16 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
Choose options
