Tylaska / Snap shackles

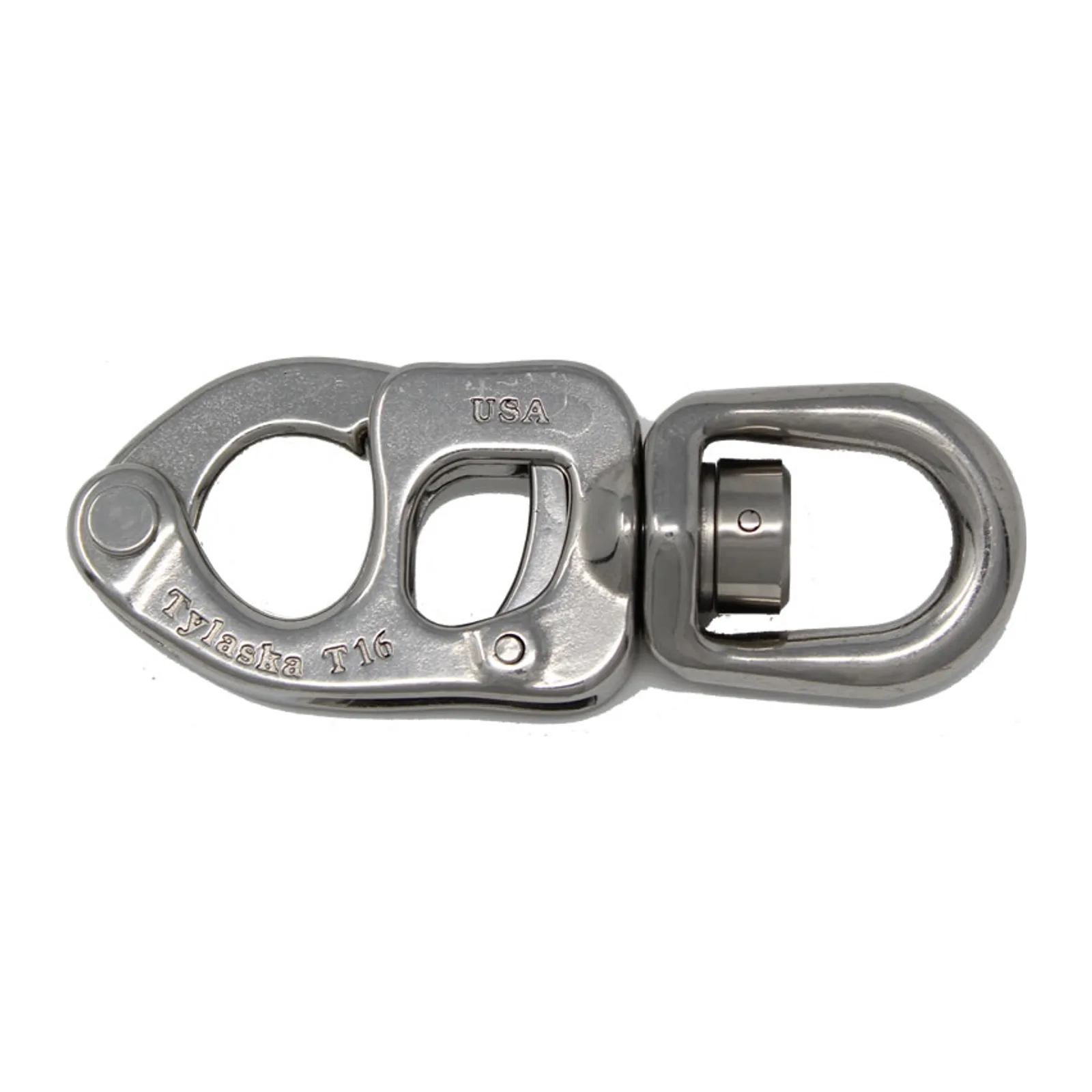

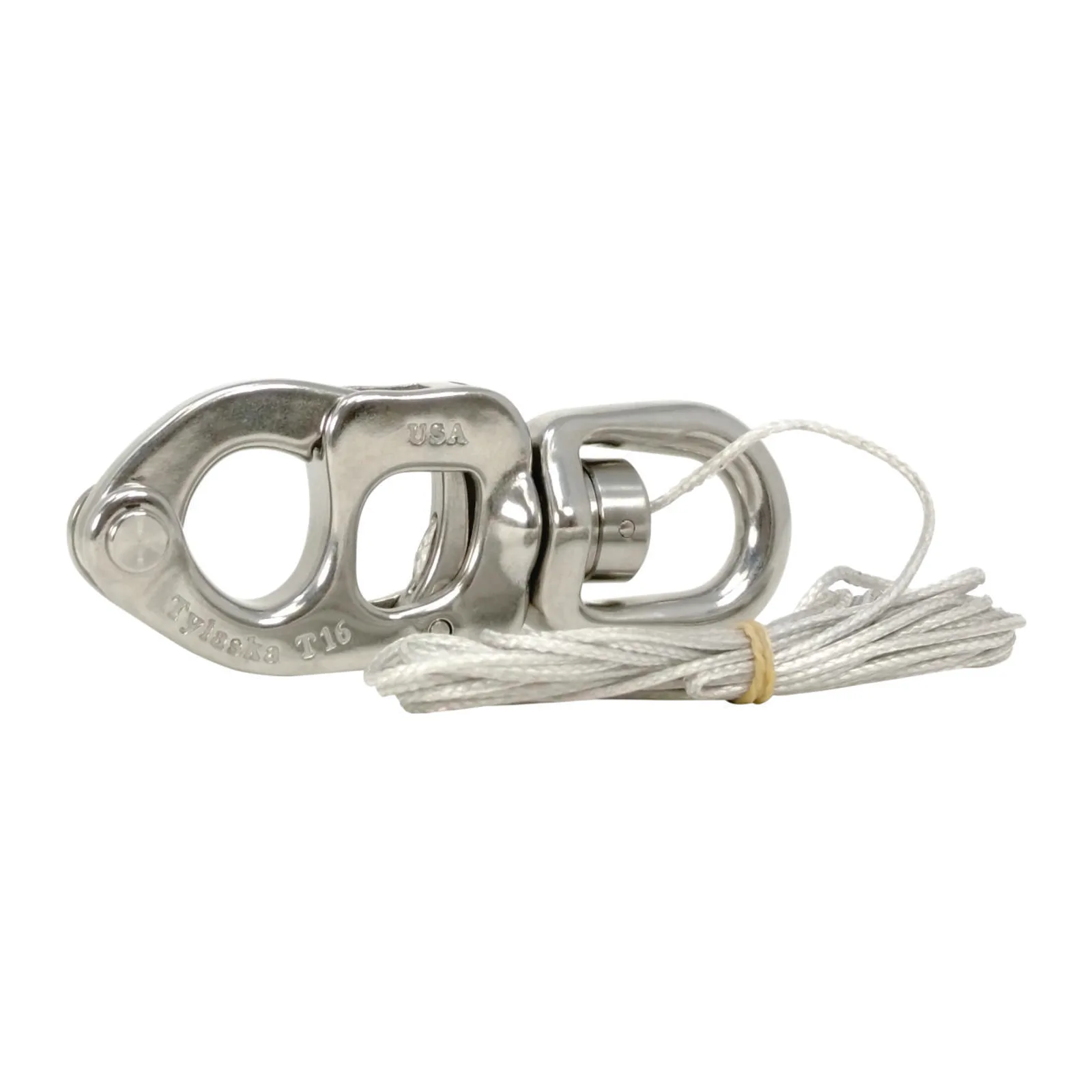

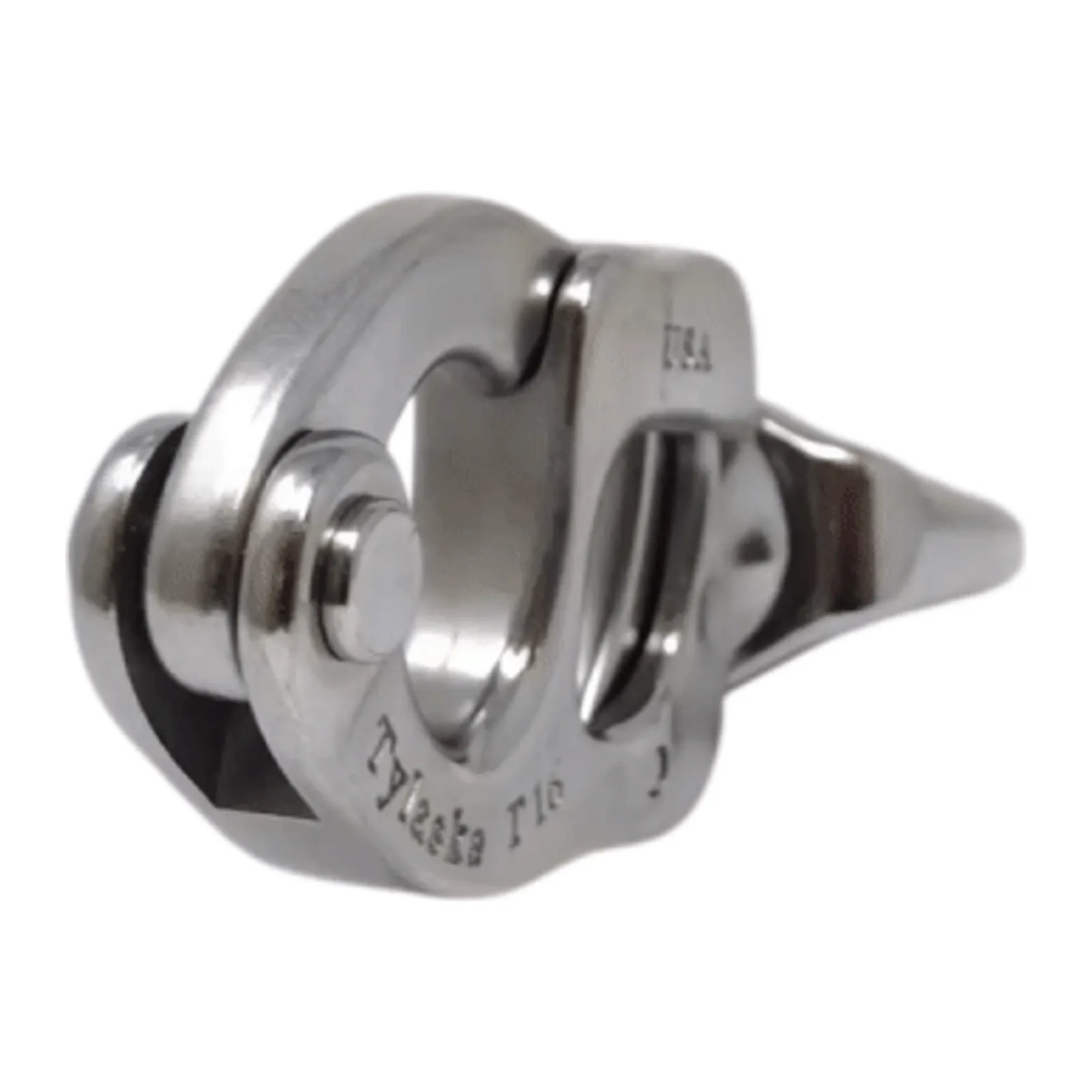

T16 Standard Bail Trigger Snap Shackle
From $335.5
- For boats 40-50ft - Breaking load – 16,000 lb - 100% proof tested to max working load - Heat treated 17-4 PH stainless steel - Available in standard, and large bail types
For boats 40-50ft
Features
- Breaking load – 16,000 lb
- 100% proof tested to max working load
- Heat treated 17-4 PH stainless steel
- Available in standard, and large bail types
| Breaking Load | 7260 kg |
|---|---|
| Working Load Limit | 3630 kg |
| Weight | 258 g |
| Dimension A (see drawing) | 22.9 mm |
| Dimension B (see drawing) | 20.1 mm |
| Dimension C (see drawing) | 120 mm |
Options
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
Choose options
