Tylaska / Snap shackles

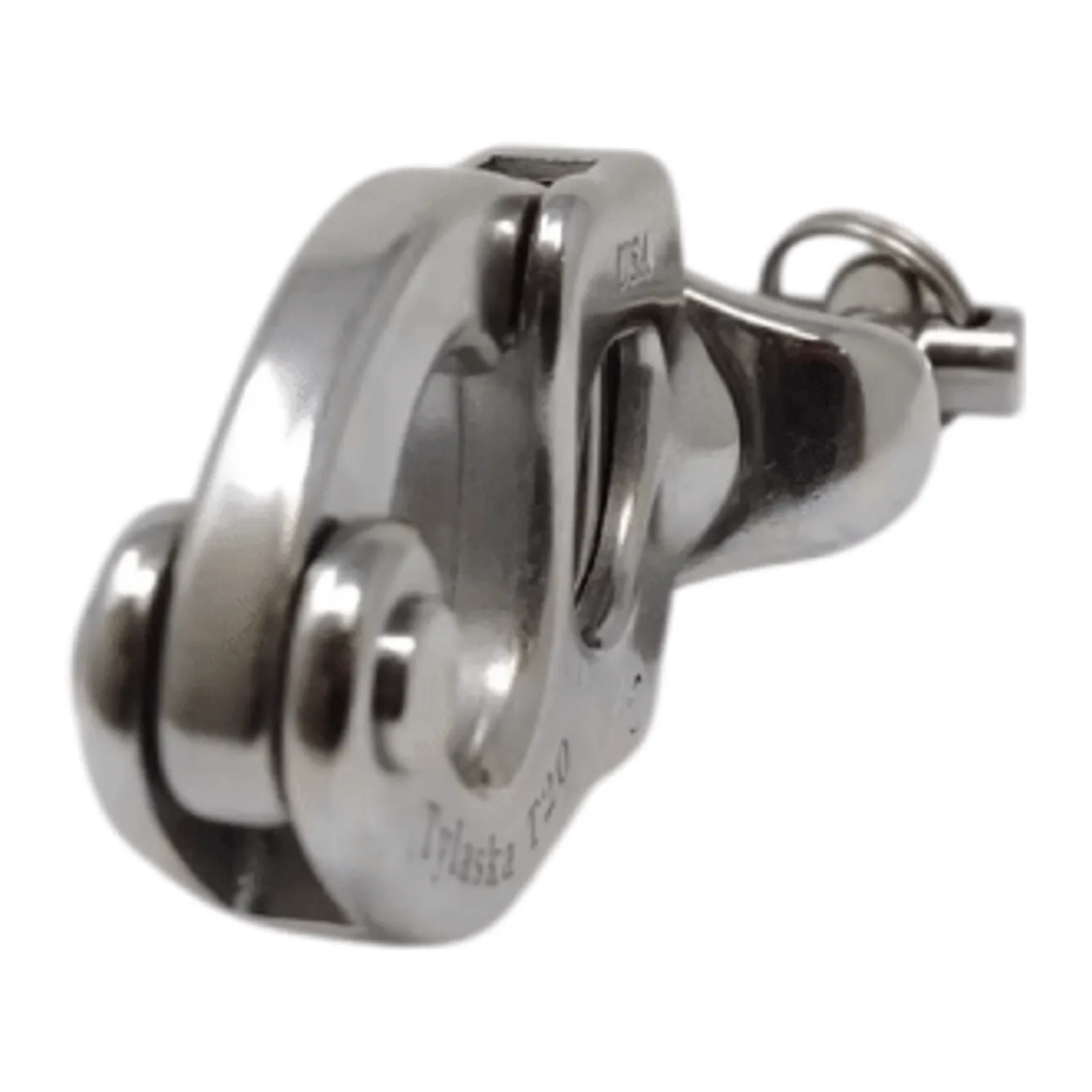

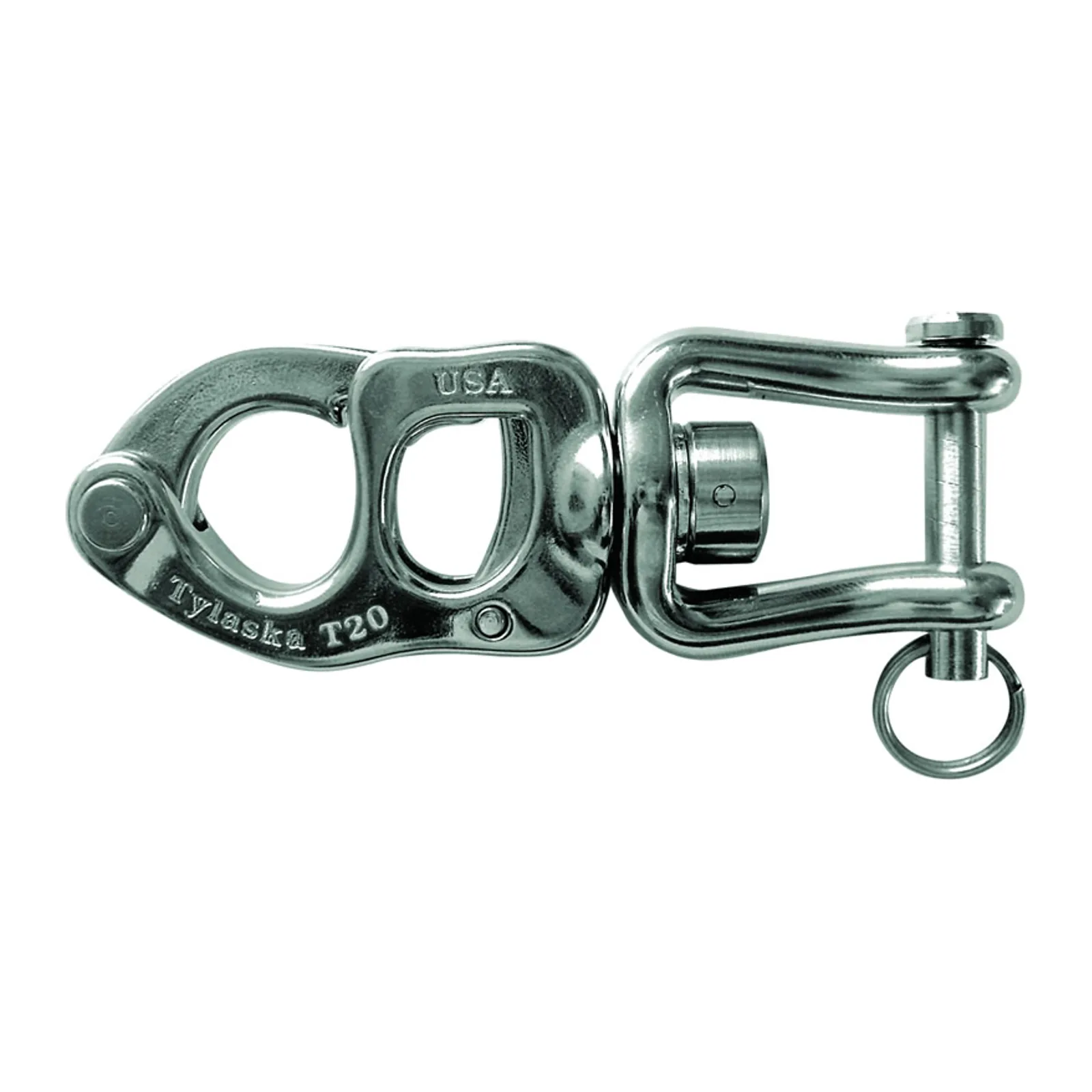

T20 Clevis Bail Trigger Snap Shackle
$424.65
- For boats 40-70ft - Breaking load – 20,000lb - 100% proof tested to max working load - Heat treated 17-4 PH stainless steel
For boats 40-70ft
Features
- Breaking load – 20,000lb
- 100% proof tested to max working load
- Heat treated 17-4 PH stainless steel
| Breaking Load | 9070 kg |
|---|---|
| Working Load Limit | 4540 kg |
| Weight | 431 g |
| Dimension A (see drawing) | 25.1 mm |
| Dimension B (see drawing) | 28.7 mm |
| Dimension C (see drawing) | 142 mm |
| Dimension D (see drawing) | 11.1 mm |
| Dimension E (see drawing) | 20.3 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
Choose options
