Tylaska / Snap shackles

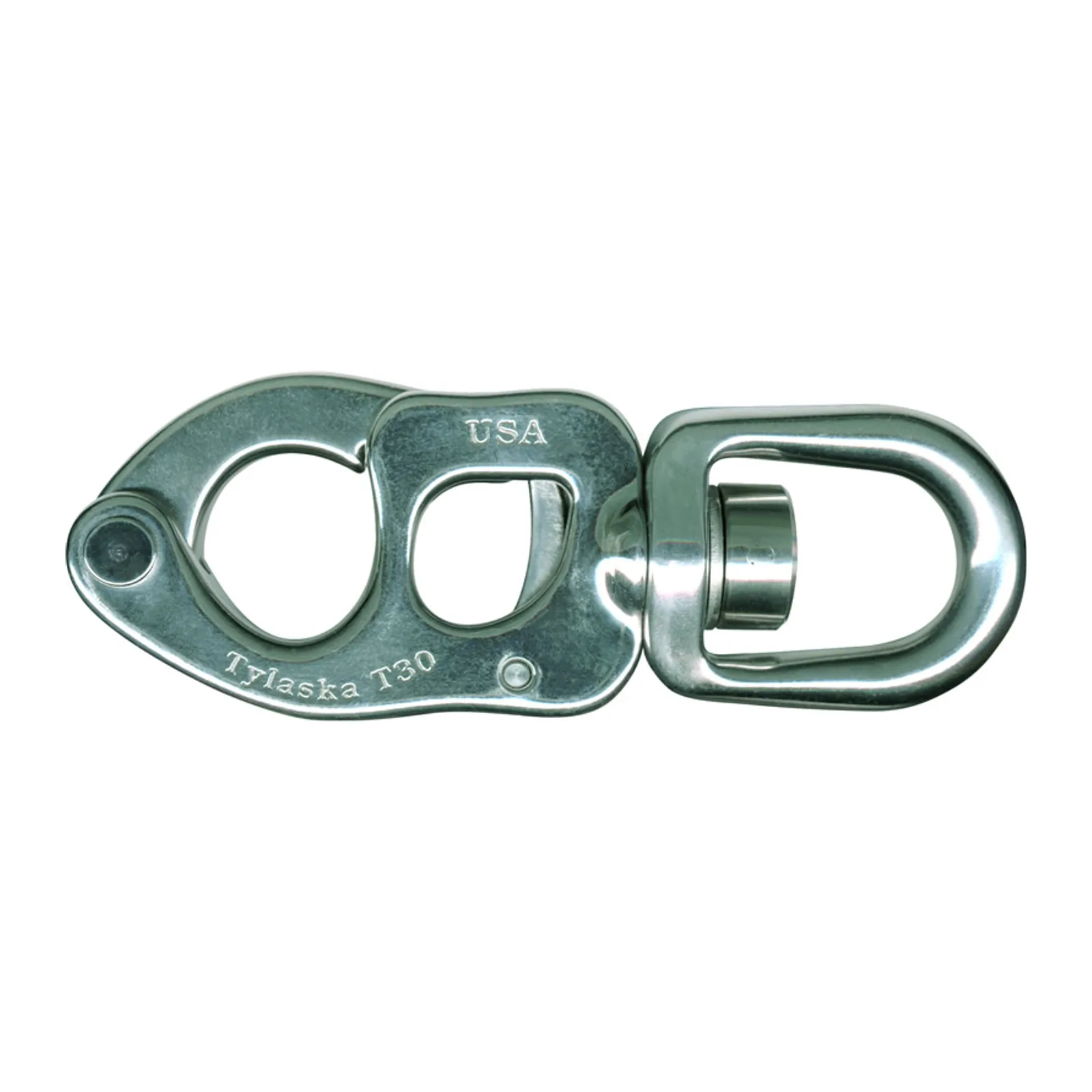

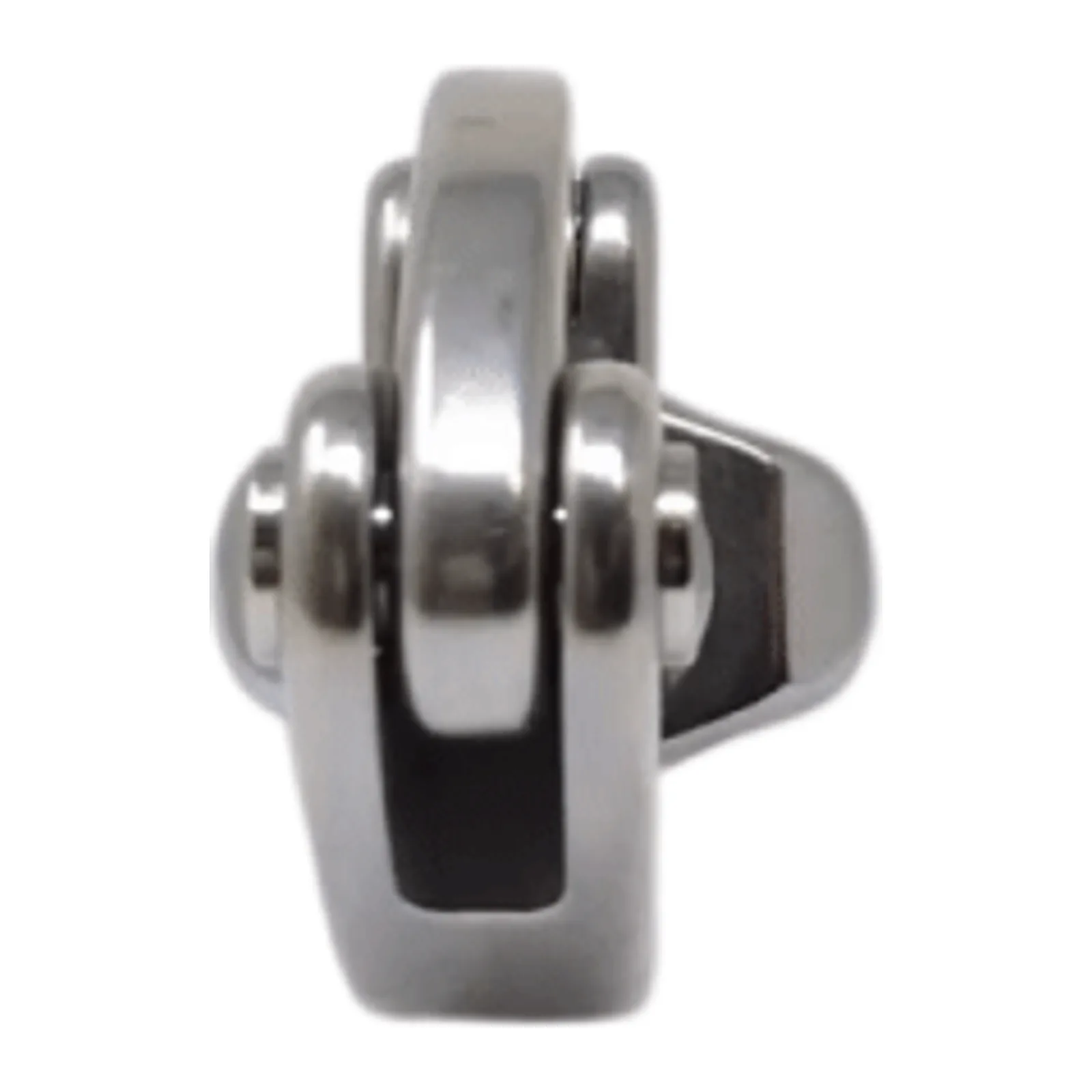

T30 Standard Bail Trigger Snap Shackle
From $723.75
- For boats 60ft+ - Breaking load – 30,000 lb - 100% proof tested to max working load - Heat treated 17-4 PH stainless steel - Available in standard, large, and clevis bail types - Optional locking pin
For boats 60ft+
Features
- Breaking load – 30,000 lb
- 100% proof tested to max working load
- Heat treated 17-4 PH stainless steel
- Available in standard, large, and clevis bail types
- Optional locking pin
| Breaking Load | 13610 kg |
|---|---|
| Working Load Limit | 6800 kg |
| Weight | 760 g |
| Dimension A (see drawing) | 31.2 mm |
| Dimension B (see drawing) | 30.5 mm |
| Dimension C (see drawing) | 166 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
Choose options
