Tylaska / Snap shackles

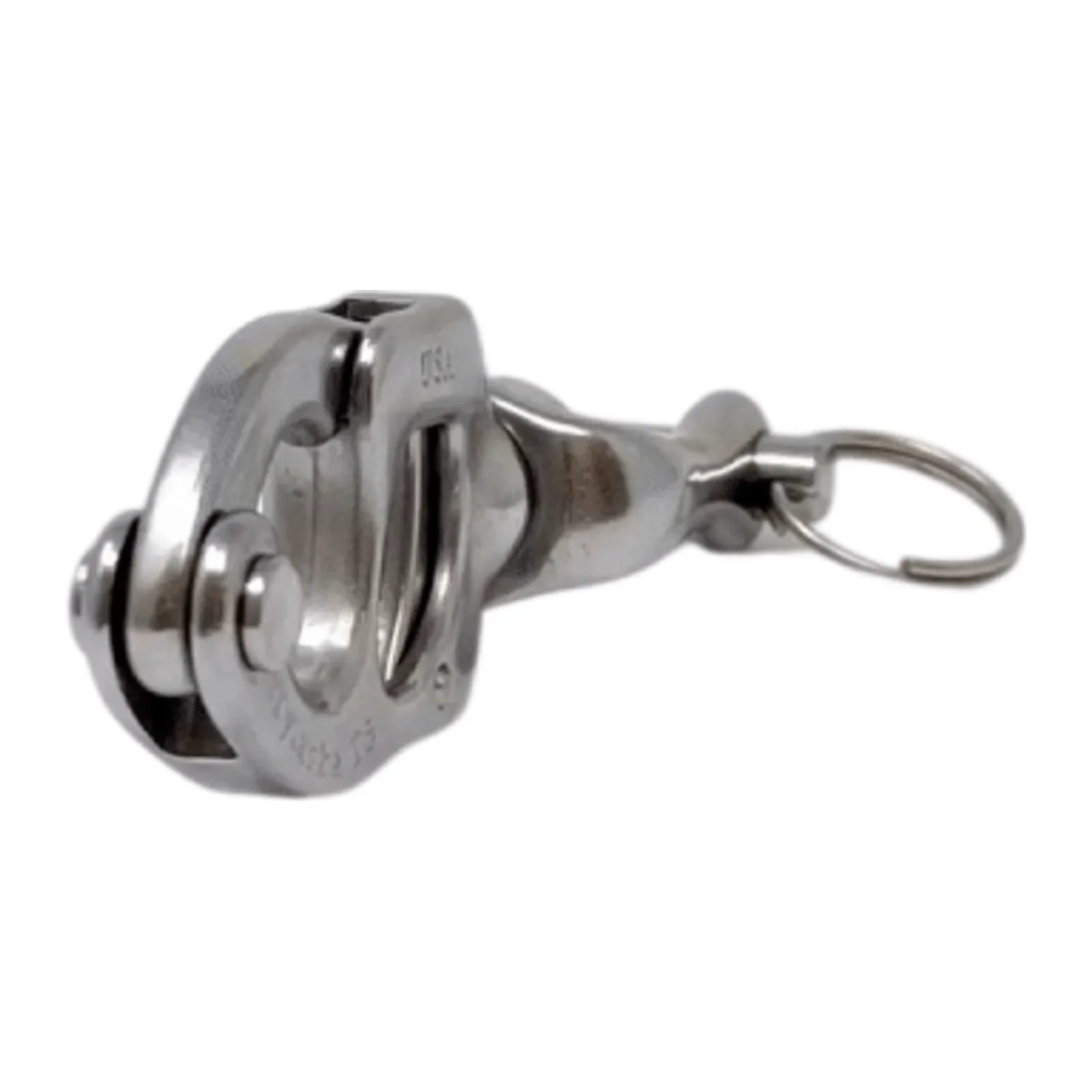

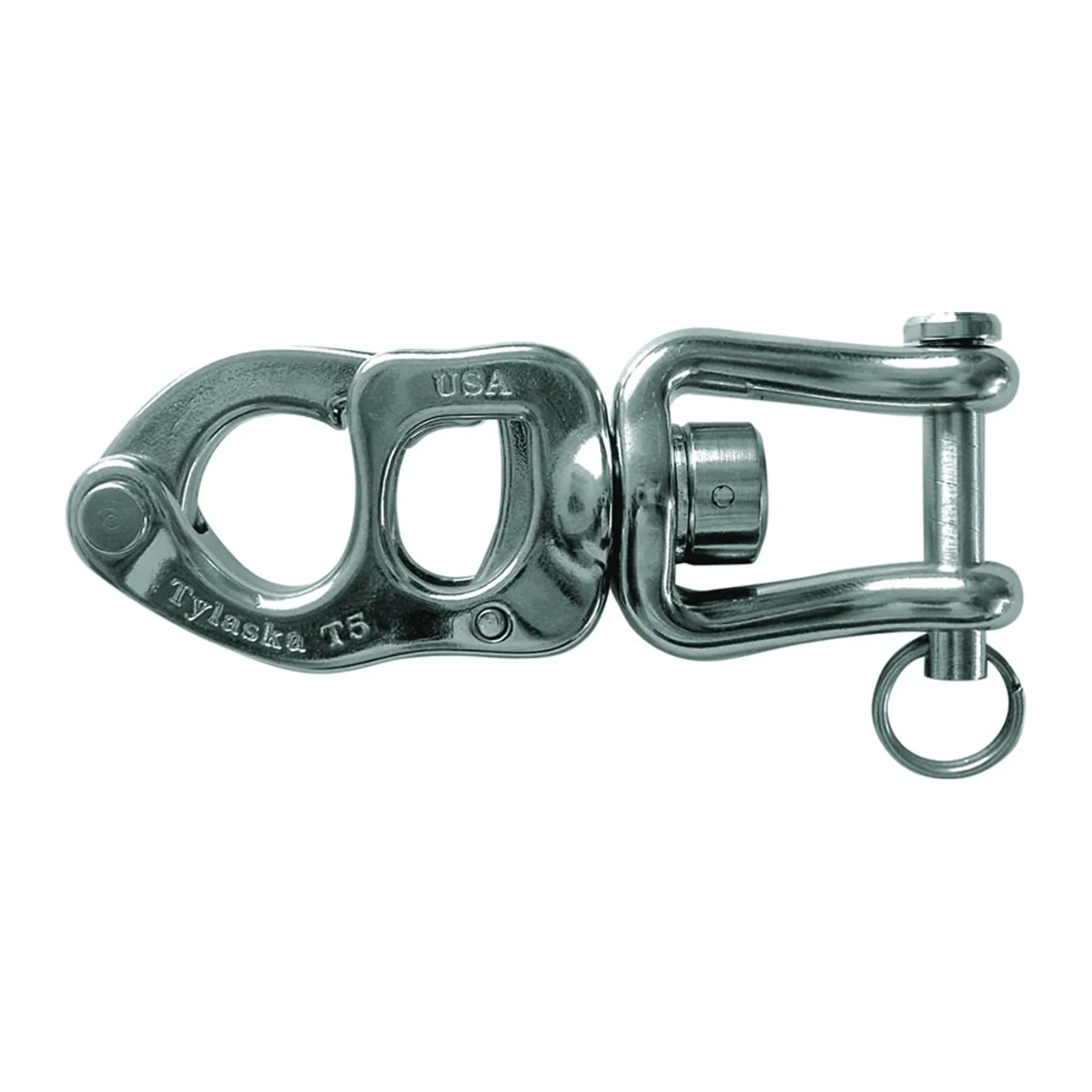

T5 Clevis Bail Trigger Snap Shackle
$258.49
- For boats 20-30ft - Breaking load – 5,000 lb - 100% proof tested to max working load - Heat treated 17-4 PH stainless steel
For boats 20-30ft
Features
- Breaking load – 5,000 lb
- 100% proof tested to max working load
- Heat treated 17-4 PH stainless steel
| Breaking Load | 2270 kg |
|---|---|
| Working Load Limit | 1130 kg |
| Weight | 77 g |

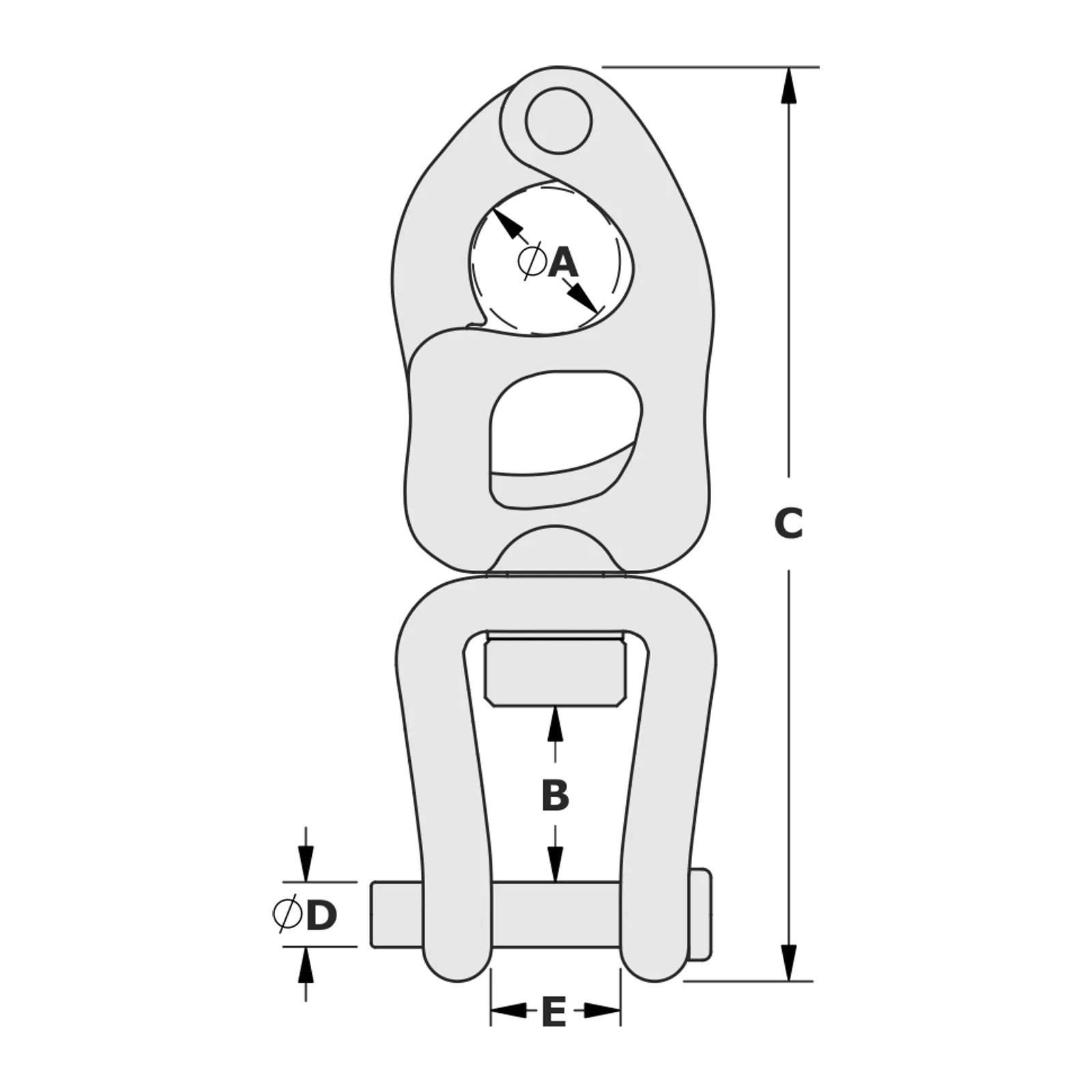

| Dimension A (see drawing) | 13.5 mm |
| Dimension B (see drawing) | 14.5 mm |
| Dimension C (see drawing) | 81 mm |
| Dimension D (see drawing) | 6.3 mm |
| Dimension E (see drawing) | 12.7 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
Choose options
