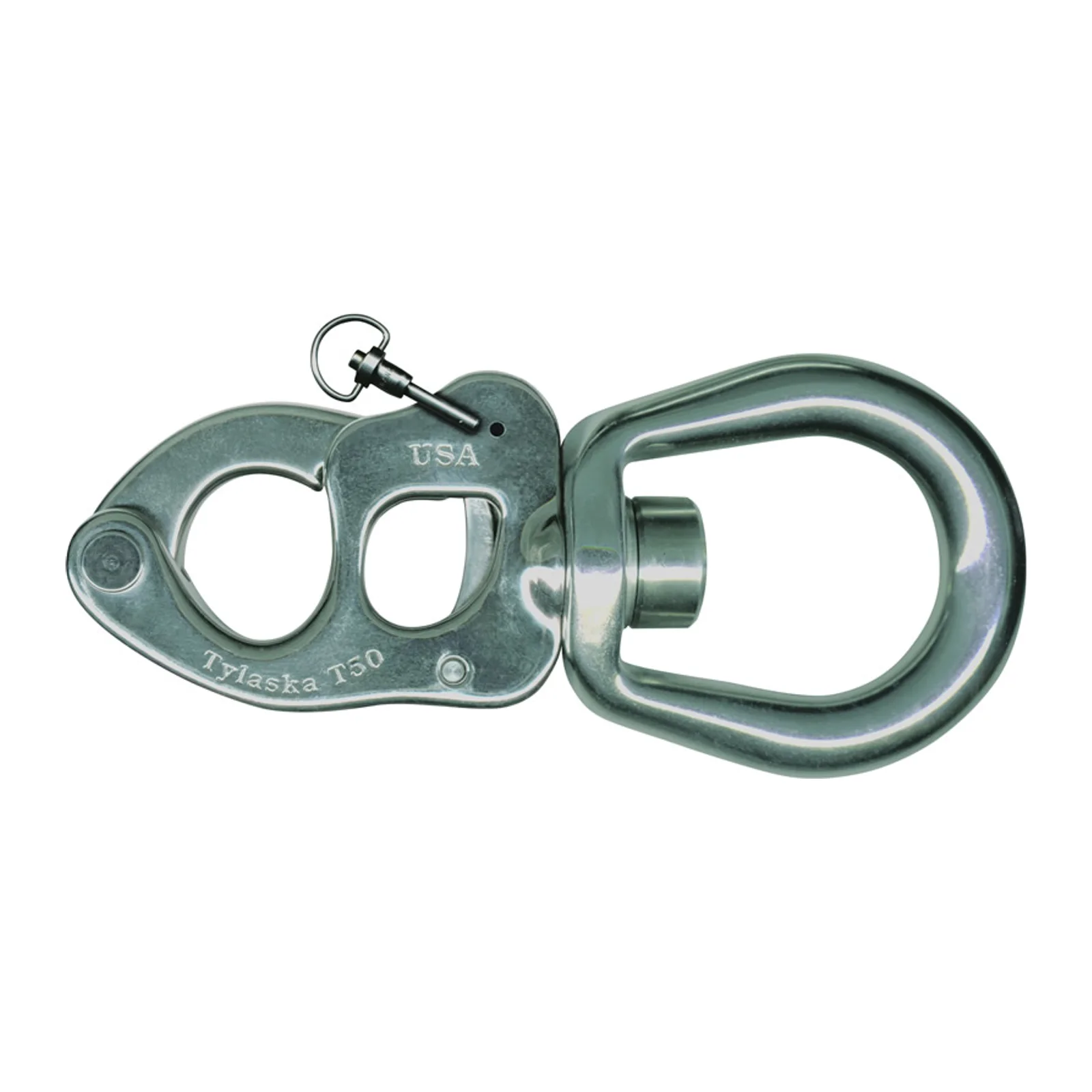

T50 Large Bail Trigger Snap Shackle
$1,920.96
- For boats 100ft + - Breaking load – 50,000 lb - 100% proof tested to max working load - Heat treated 17-4 PH stainless steel - Included trigger-locking pin
For boats 100ft +
Features
- Breaking load – 50,000 lb
- 100% proof tested to max working load
- Heat treated 17-4 PH stainless steel
- Included trigger-locking pin
| Breaking Load | 22680 kg |
|---|---|
| Working Load Limit | 11340 kg |
| Weight | 4.15 kg |
| Dimension A (see drawing) | 49.5 mm |
| Dimension B (see drawing) | 75.7 mm |
| Dimension C (see drawing) | 301 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
