Tylaska / Snap shackles

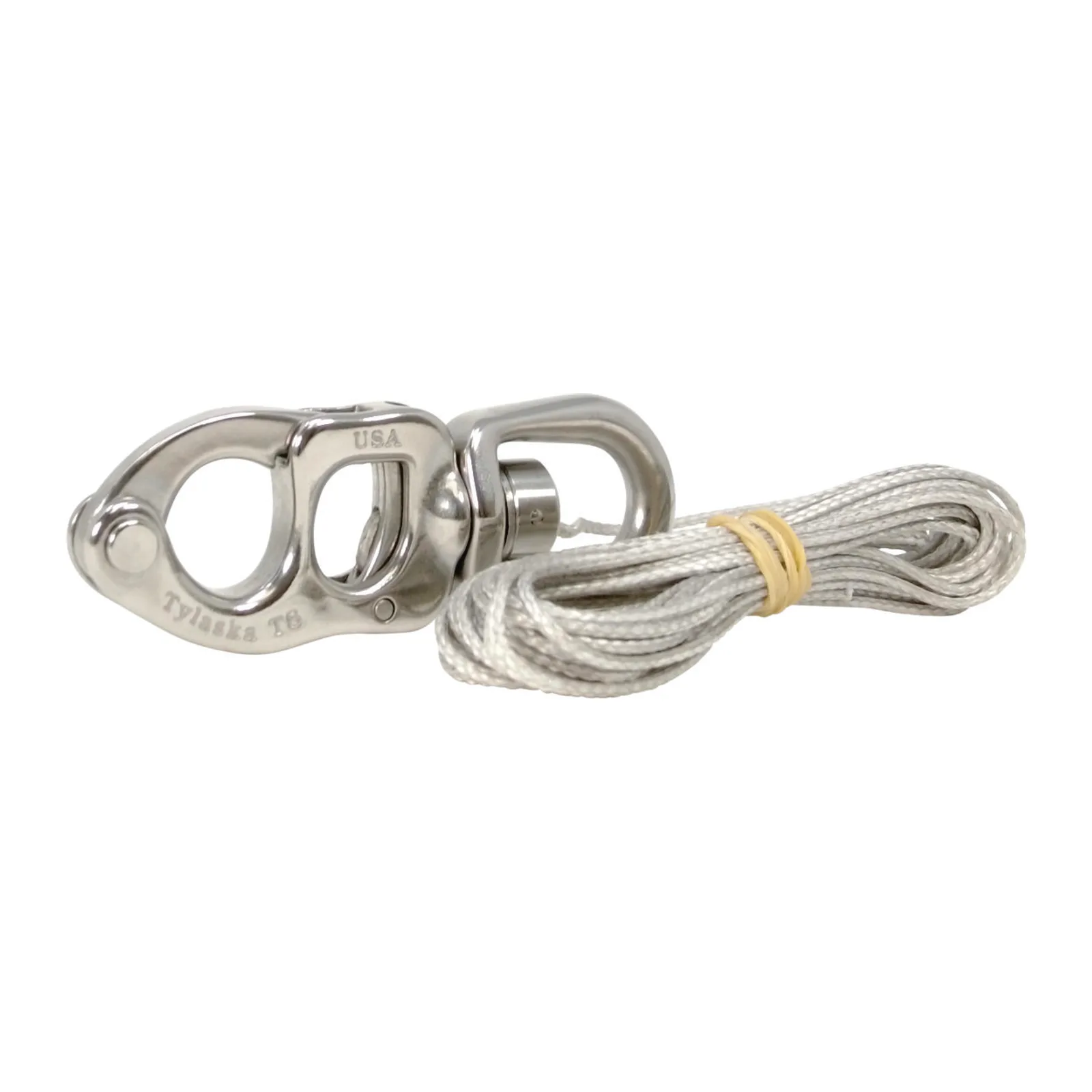

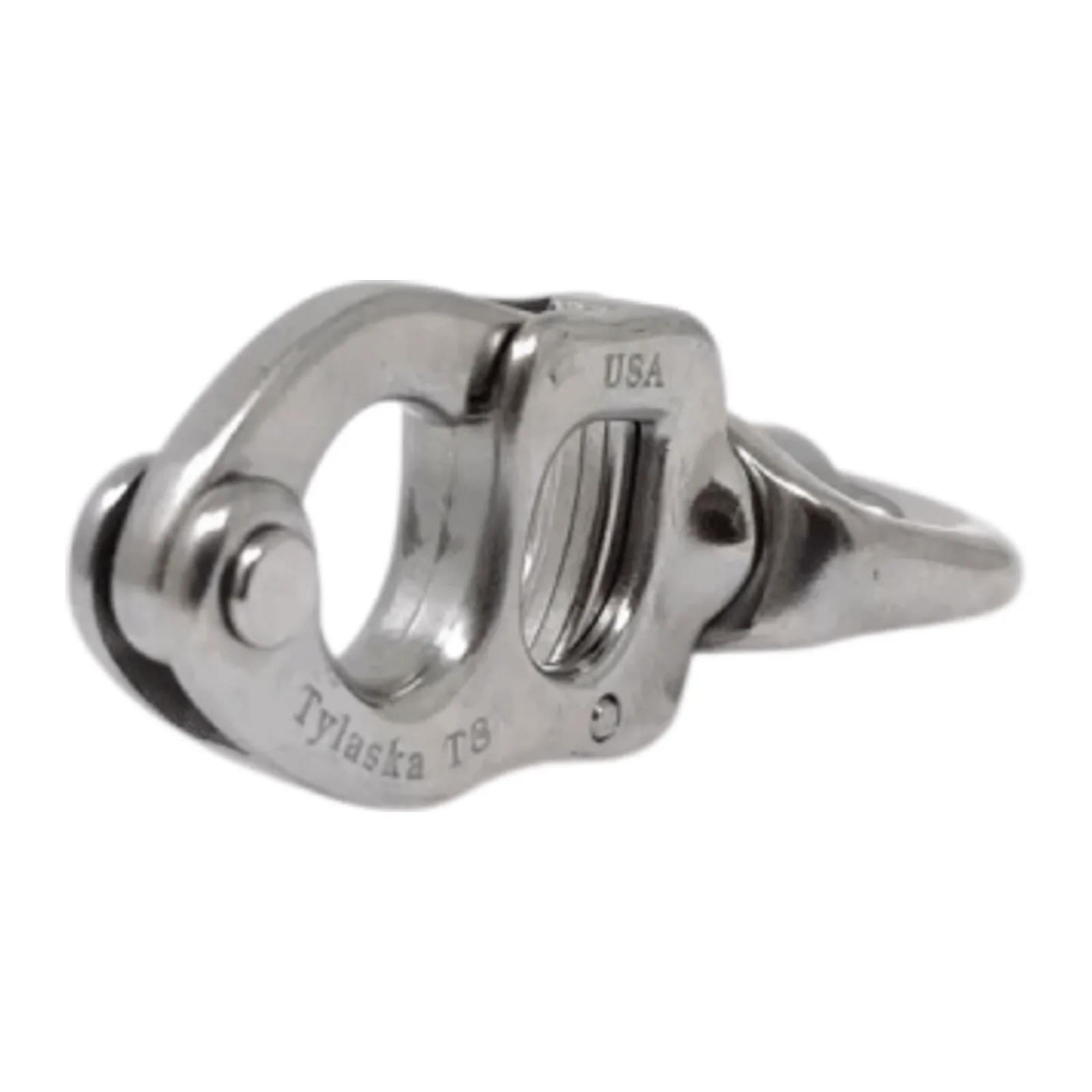

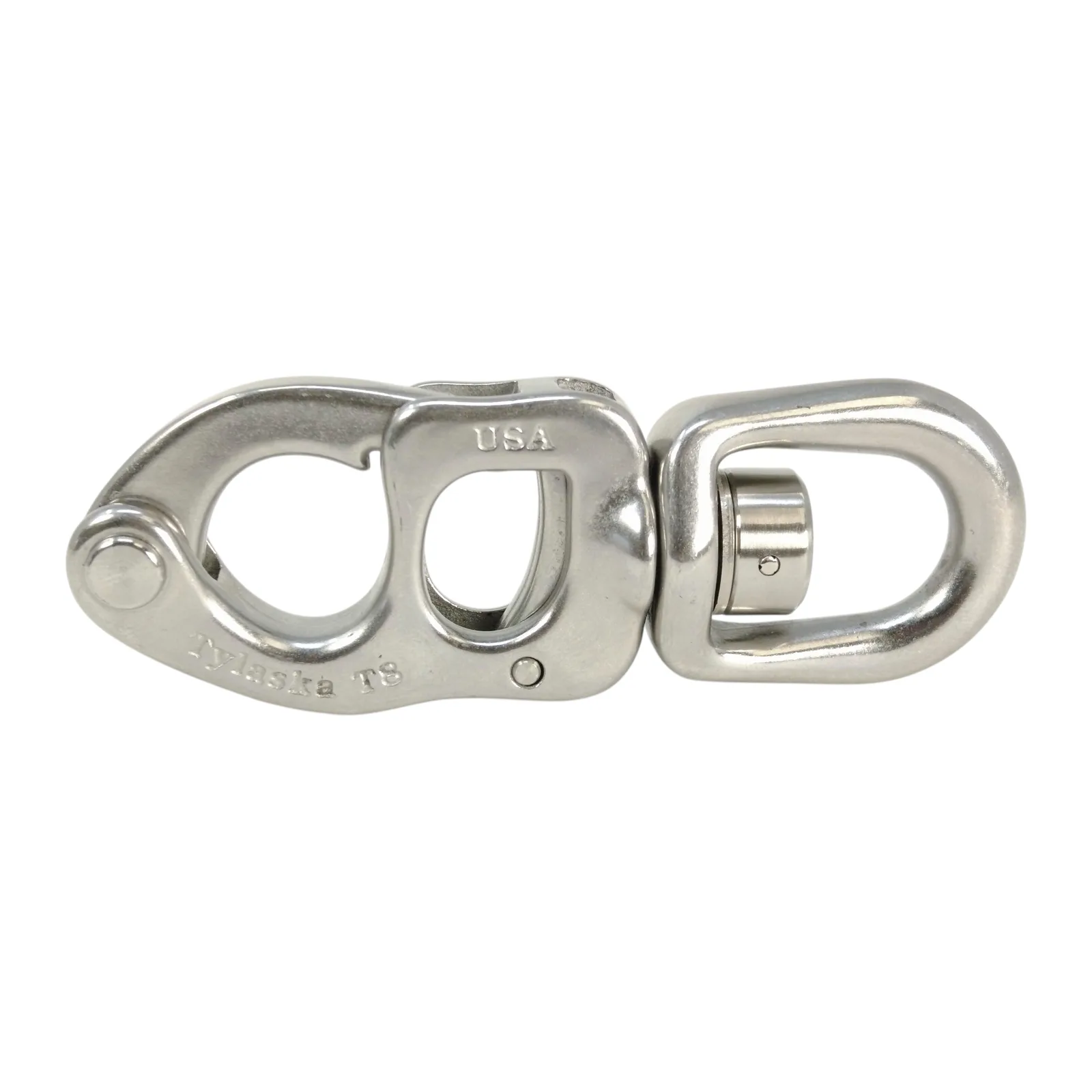

T8 Standard Bail Trigger Snap Shackle
From $254.1
- For boats 24-36ft - Breaking load – 8,000 lb - 100% proof tested to max working load - Heat treated 17-4 PH stainless steel - Available in standard, large, and clevis bail types - Also available in black oxide and bronze finish
For boats 24-36ft
Features
- Breaking load – 8,000 lb
- 100% proof tested to max working load
- Heat treated 17-4 PH stainless steel
- Available in standard, large, and clevis bail types

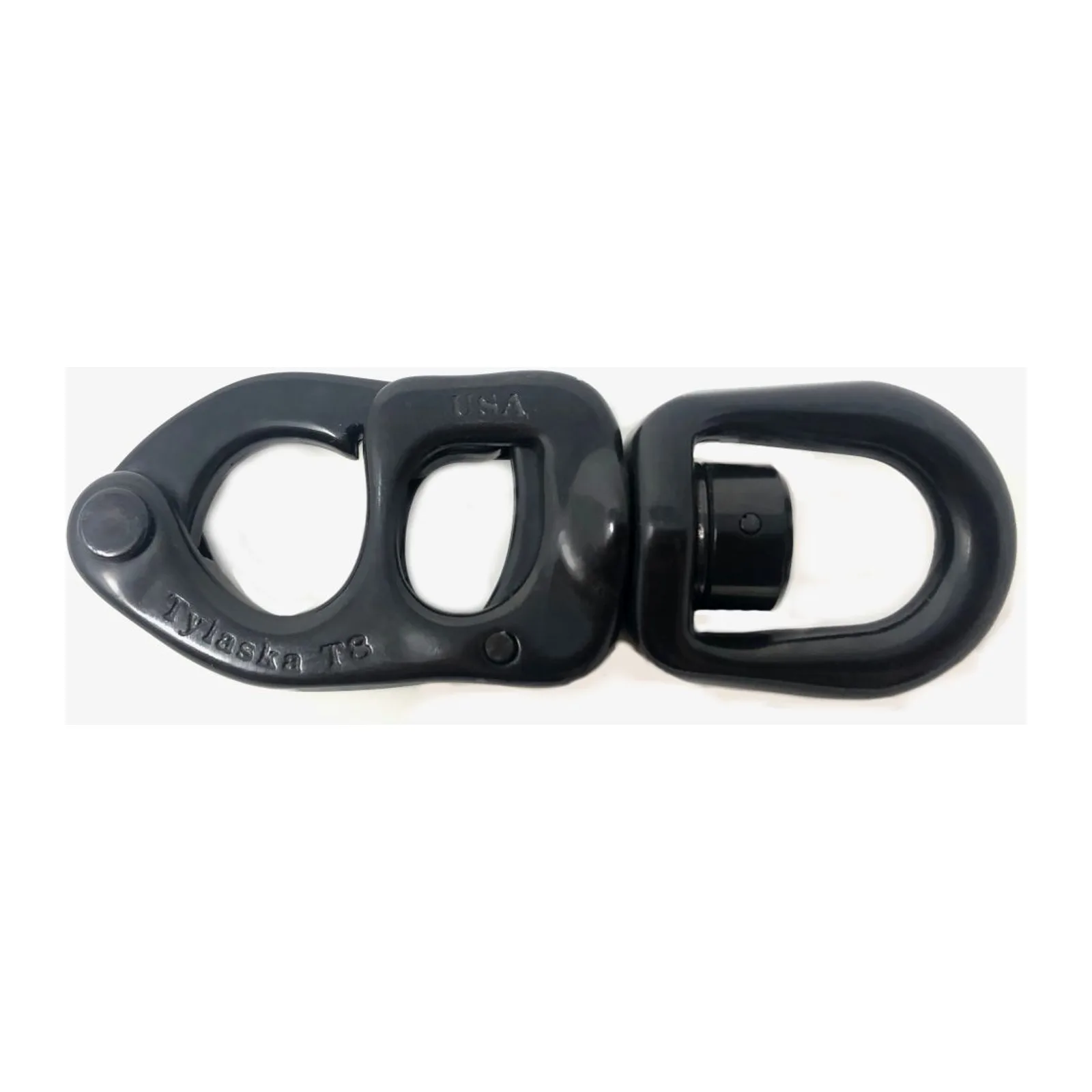

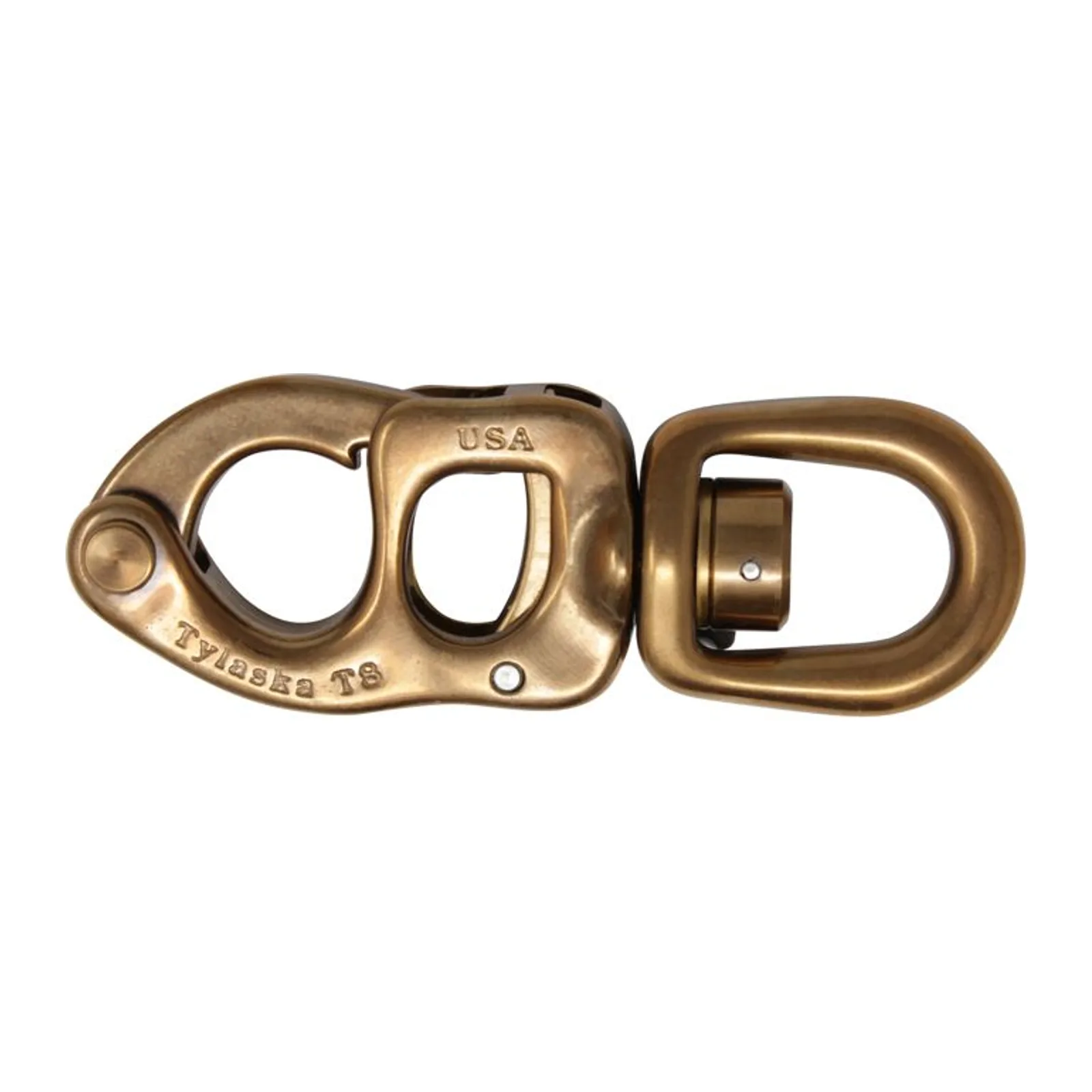

- Also available in black oxide and bronze finish
| Breaking Load | 3630 kg |
|---|---|
| Working Load Limit | 1810 kg |
| Weight | 99 g |
| Dimension A (see drawing) | 16mm |
| Dimension B (see drawing) | 14.6 mm |
| Dimension C (see drawing) | 88.5 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
Choose options
