Tylaska / Low friction hardware

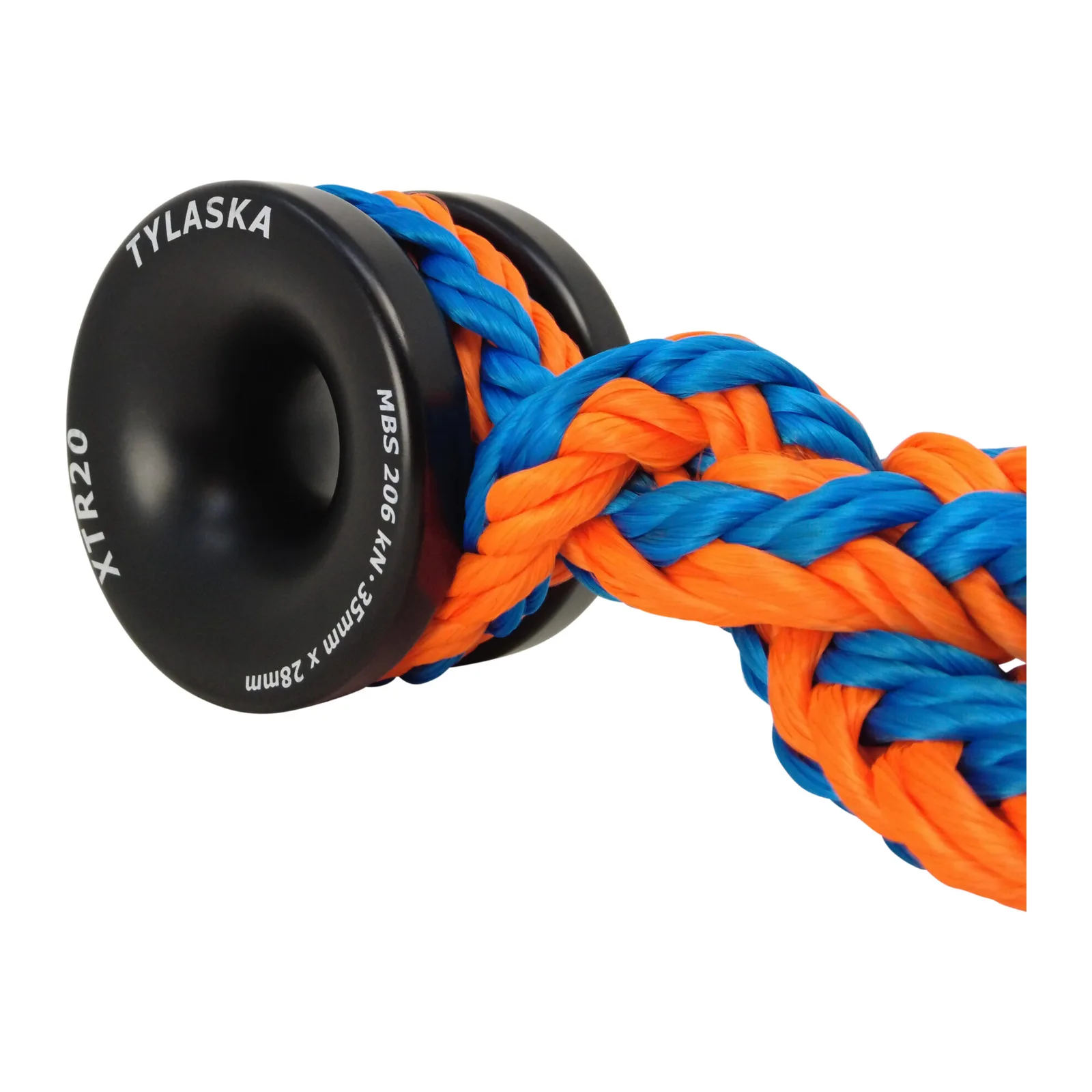

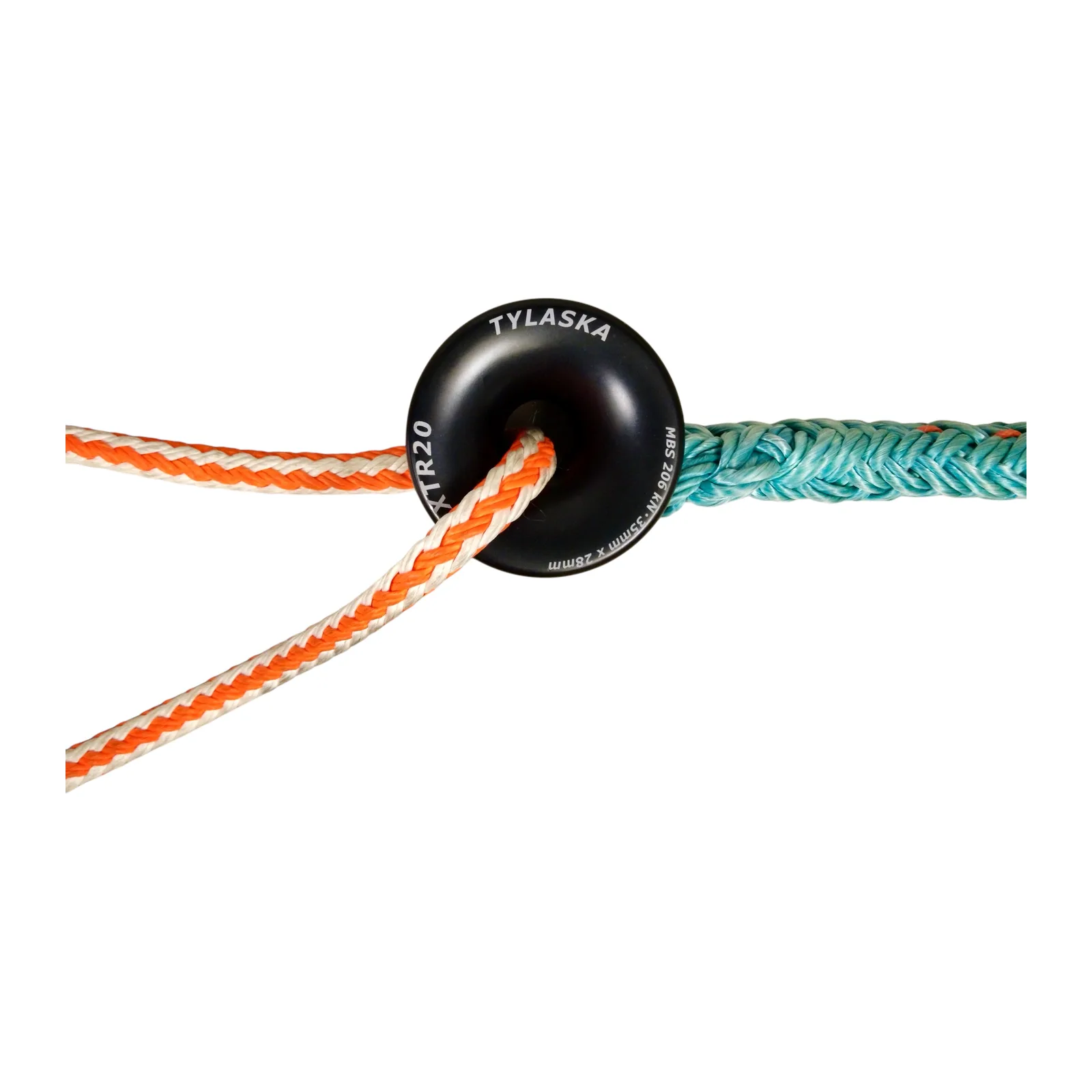

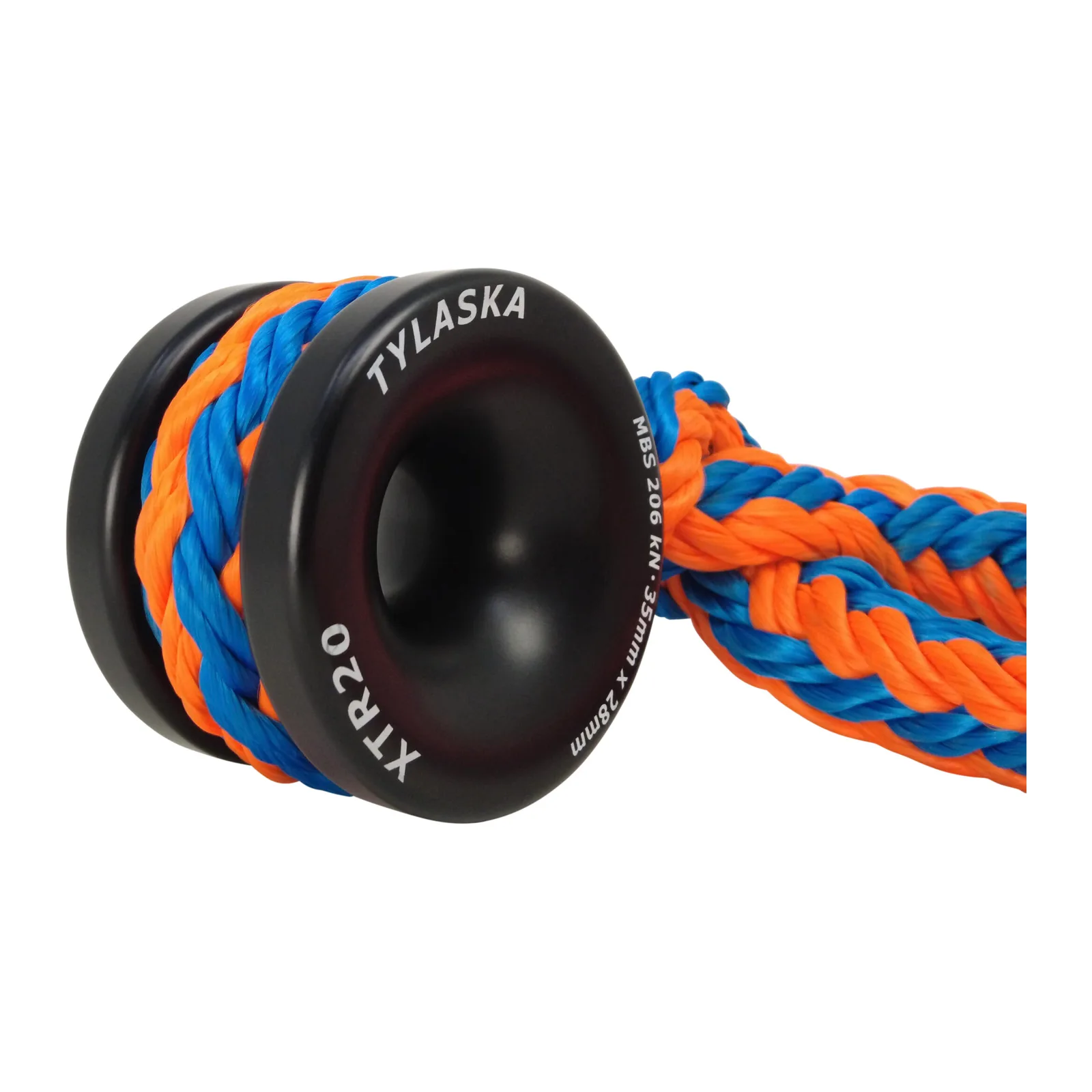

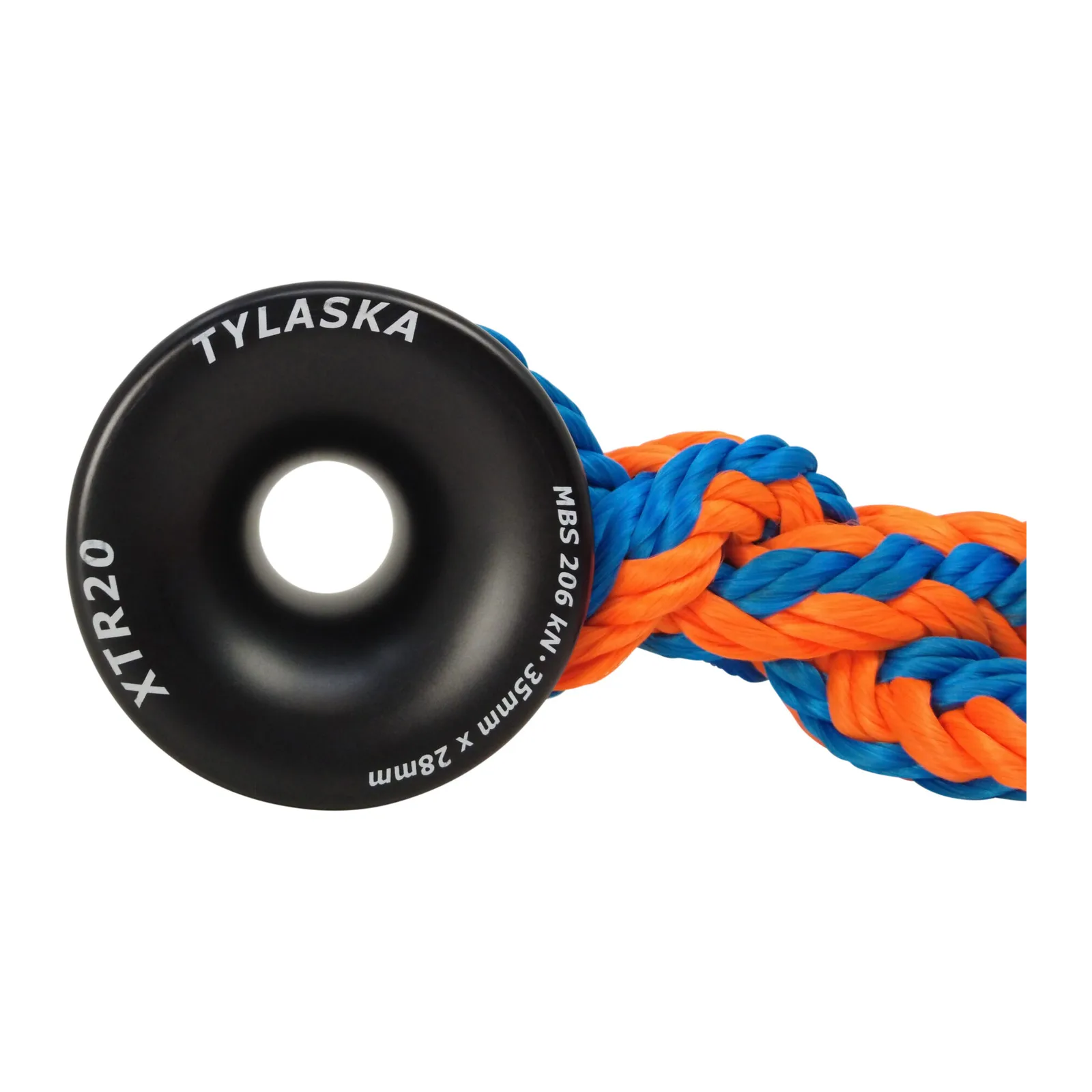

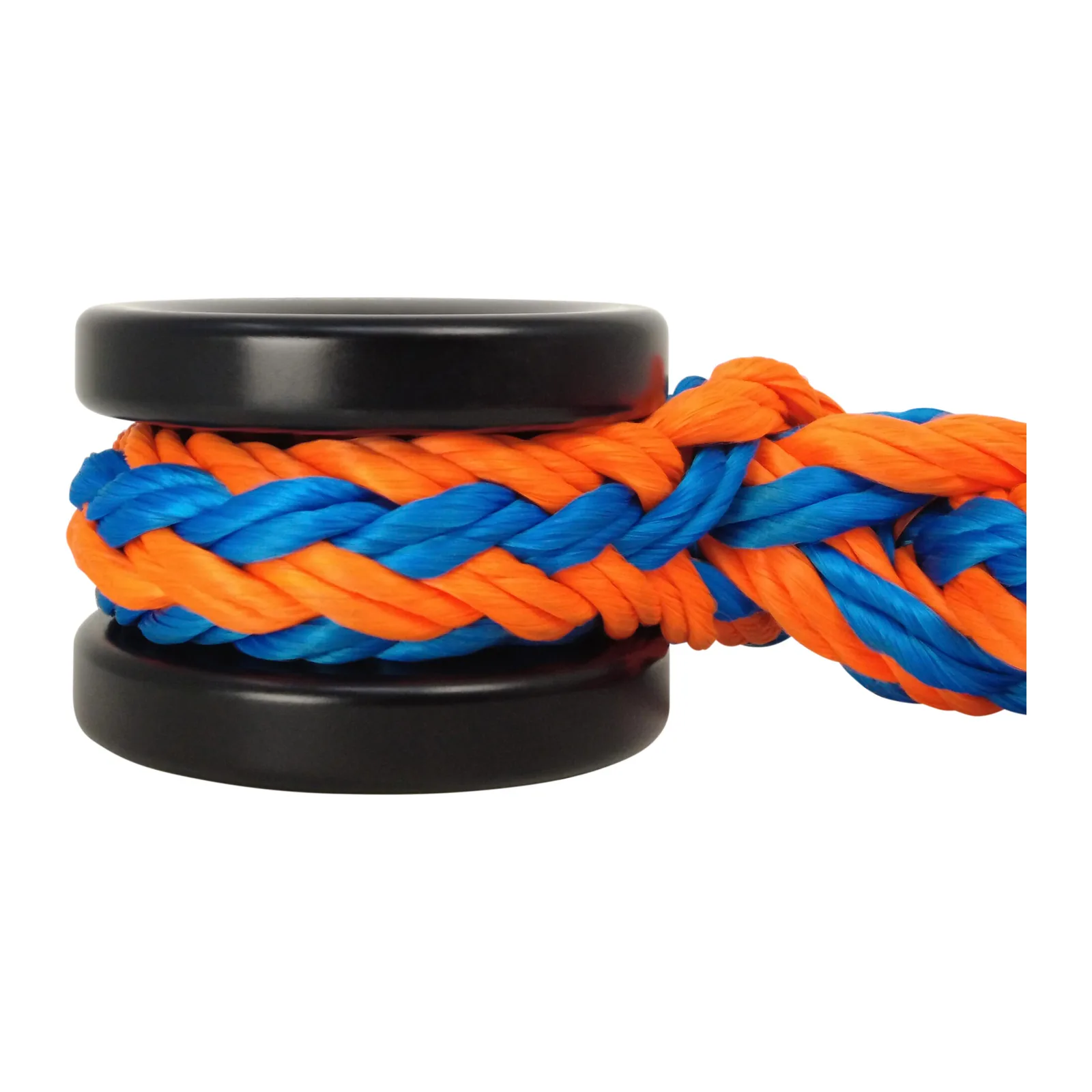

XTR 20 Rigging Ring
$102.95
XTR 20 The XTR20 has the same outer diameter as our TR28 tree rings, but has a smaller interior hole and increased overall width. This provides you with a massive bend radius for your working line which reduces friction and wear or your working line. This increases line life as well as providing smooth and consistent drops with even extremely large and heavy pieces. - 206 kN MBS - Hole diameter: 28mm - Groove width: 35mm - Maximum bend radius - 6061 aluminum - Excellent frictional heat dissipation - Type III mil-spec hard-coat anodized - Max sling line diameter 32mm - Max working line diameter 20mm Please contact our knowledgeable dealers for splicing or more information
XTR 20 The XTR20 has the same outer diameter as our TR28 tree rings, but has a smaller interior hole and increased overall width. This provides you with a massive bend radius for your working line which reduces friction and wear or your working line. This increases line life as well as providing smooth and consistent drops with even extremely large and heavy pieces.
Features
- 206 kN MBS
- Hole diameter: 28mm
- Groove width: 35mm
- Maximum bend radius
- 6061 aluminum
- Excellent frictional heat dissipation
- Type III mil-spec hard-coat anodized
- Max sling line diameter 32mm
- Max working line diameter 20mm Please contact our knowledgeable dealers for splicing or more information
| Weight | 794 g |
|---|---|
| Minimum Breaking Strength | 206 kN |
| Dimension A (see drawing) | 27.9 mm |
| Dimension B (see drawing) | 35.4 mm |
| Dimension C (see drawing) | 101.1 mm |
| Dimension D (see drawing) | 70.9 mm |
Made to order. We order it from Tylaska when you buy. Ships in 5 to 7 business days.
